YDJ-II

Observation angle: 45°tilted

Magnification of eyepiece: 16X

Interpupillary distance: 50mm-80mm

Diopter: ±5D

Focal length of objective: F=300mm

Magnification changer: 5-step: 0.4X, 0.66X, 1X, 1.5X, 2.5X

Total Magnification: 2.7X, 4.4X, 6.6X, 10X, 16.6X

Linear field: 90mm, 55mm, 37mm, 24mm, 15mm

Fine focusing distance: 20mm

Balance arm: Counterweight adjustable and can be locked

Illumination: Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>30000lx

Filter: Build-in green & blue filters

Floor stand: Short column fitted on the five-star base with casters

With beamsplitter and video camera adapter, C-mount 1/3 inch video camera attachable

Power supply: AC100V-AC240V

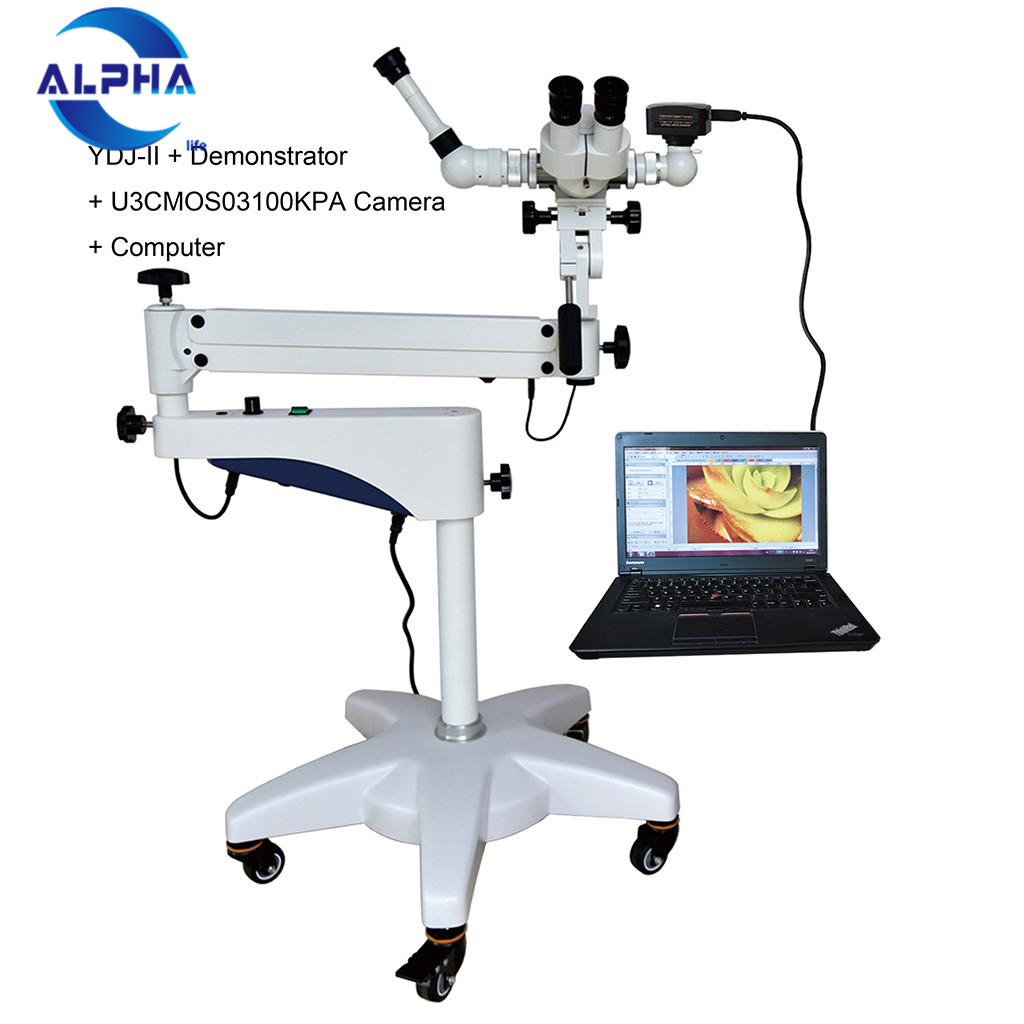

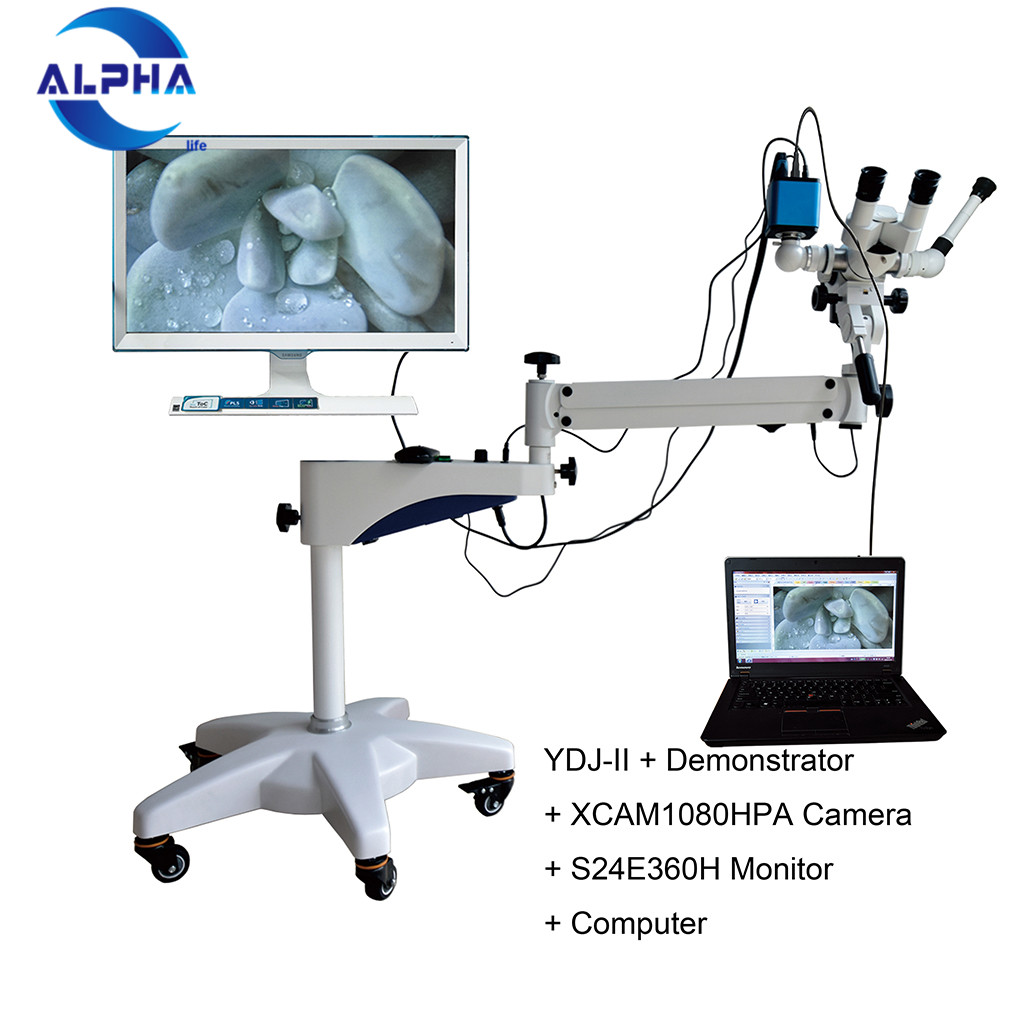

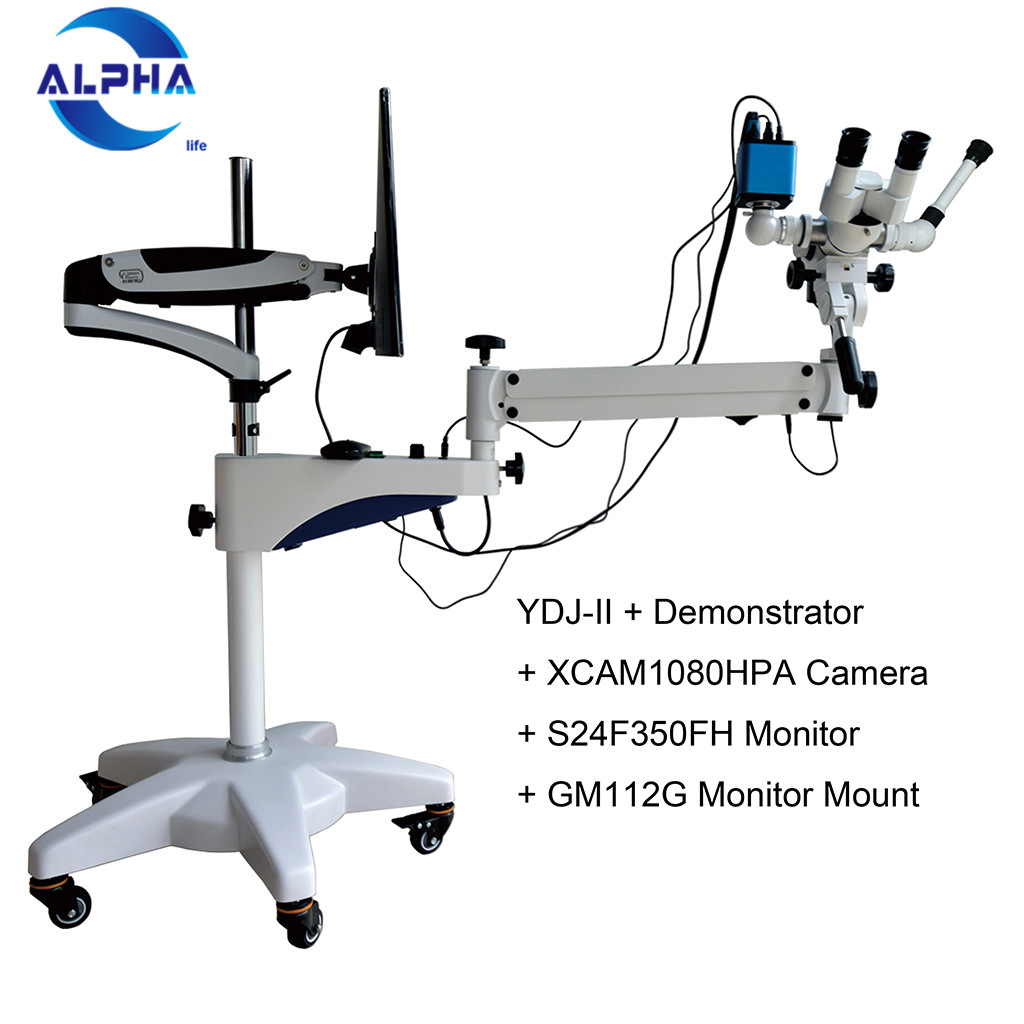

Optional accessories: Demonstrator, Camera (MDCC320, U3CMOS03100KPA, XCAM1080PHA, VGA200, WK-73X10, WK-73X10H), SLR camera adapter, Monitor (S22E360H, H1766), Objective (F=230mm & F=280mm)
