XYKXZFK-9

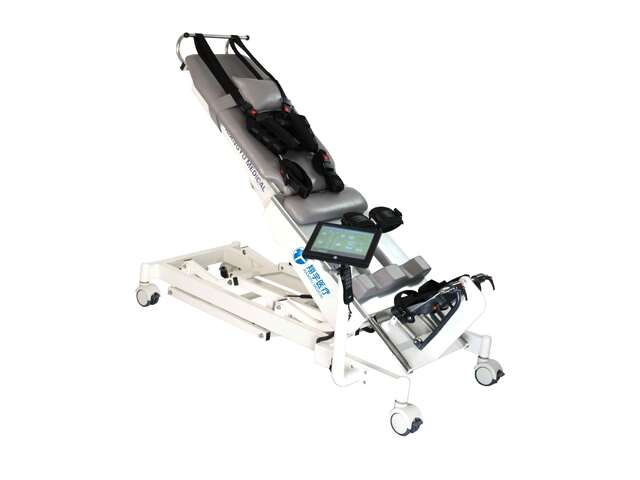

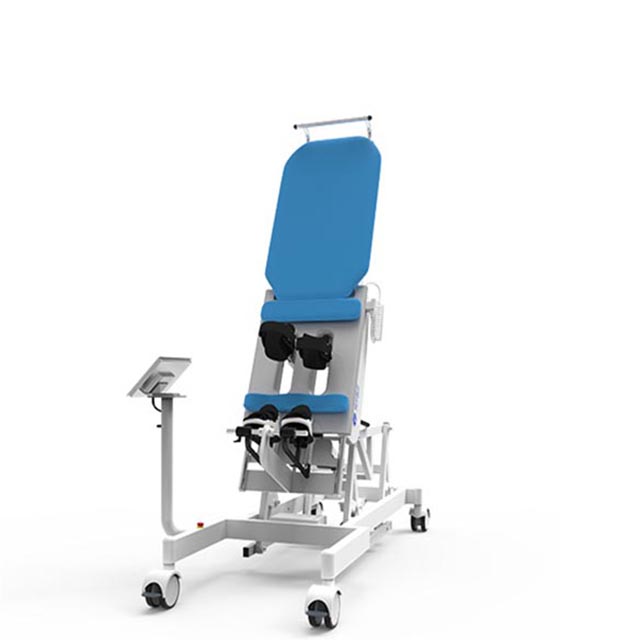

Lower Limb Rehabilitation System



Model Number: XYKXZFK-9

Service: ODM & OEM service

Function: Used for standing rehabilitation training

Feature: Physiotherapy treatments

Voltage: 220V/50 Hz

Dimensions(mm): 2500mm*1050mm*980mm

Description

Product Feature

  • The product is automatically controlled by the microcomputer.
  • Can inspect the spasm of the lower limb, in case of spasm the drive circuit shall stop immediately to avoid anybody injury.
  • Standing and stepping training system is a perfect combination of vertical bed and rehabilitation training for lower limb and it stimulates passive training on knee joints and ankle joints. Applicable for long-term bedridden patients.
  • Equipped with imported and high-quality controller and driver to ensure stable operation without noise.
  • The electric retractable device of foot treadle can be adjusted flexibly according to the patients’ heights and conduct pressure on the patients’ lower limbs. Prevent osteoporosis.
  • After inspecting spasm of the lower limb, the drive circuit shall stop immediately.
  • The spasm sensitivity can be set according to the demand of patient.
  • Weight loss function.
  • Active function and passive function training.
  • LCD touch screen can judge the muscle status based on the waveform.



Parameter

Model XYKXZFK-9
Power supply AC220V 50Hz
Power 780VA
Bed surface lifting range 0 ~ 300mm
Training time 0 ~ 99min adjustable
Rising angle 0 ~ 90 ° adjustable
The angle of pedal 0 ~ 30 ° adjustable
Stepping speed 1 ~ 80 steps / min adjustable
The pedal length can be adjusted electrically 0 ~ 200mm
Electrical weight reducing can be adjusted 0 ~ 150mm
Load 180kg
