Description
Product Introduction

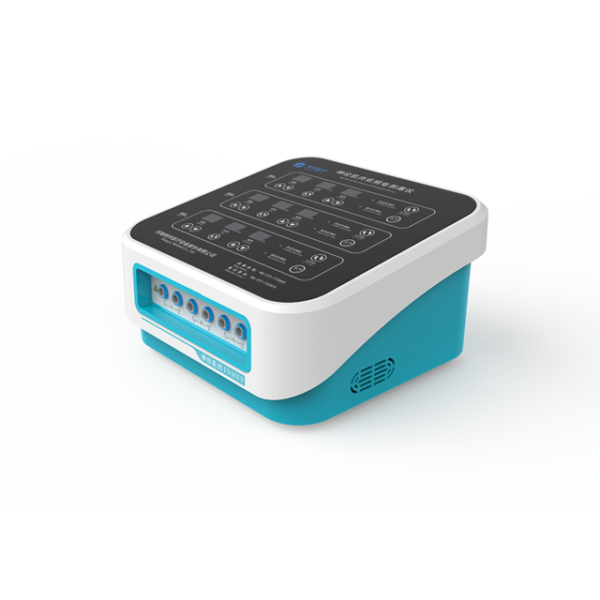

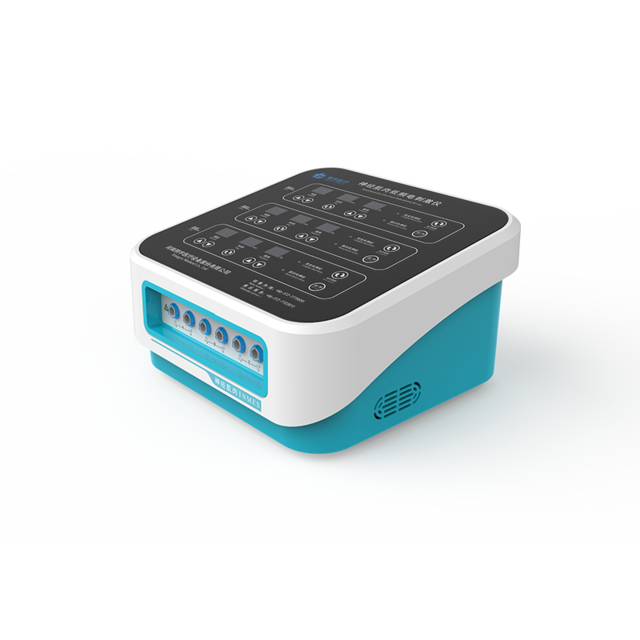

Neuromuscular Electrical Stimulation Device (NES) applies the low-frequency pulse current to stimulate the muscle to make it contracted, so as to recover the movement function. NMES has been in the clinical application for more than 100 years, and in recent years, the application of NMES has been significantly increased in the rehabilitation of neuromuscular and skeletal diseases.
Principle
Neuromuscular Electrical Stimulation Device (NES) applies the low-frequency pulse current to stimulate the denervated muscles, to reduce the muscular fibrosis, to slow down the muscular denervated atrophy, to promote the blood flow and keep the muscular nutrition, and to promote the strengthening of denervated muscles and re-innervated muscle fibers to rapidly increase the muscle tension.
Product Parameter
| Model | XY-K-SISS-A |
| Power supply | 220V±22V 50Hz±1Hz |
| Power | 35VA |
| Pulse frequency | 500Hz; 0.5Hz-5Hz |
| Pulse width | 5*1ms; 10ms |
| current effective value | ≤80mA |
| Timing | 5min、10 min、15min、20min、25min、30min |
| Output waveform | Two-way unsymmetric(al) square wave |
| Output | Three pulse output |
Product Feature
- a) Three channels pulse output, available for treatment of three patients or three sites, independently adjustable in the stimulation intensity.
- b) Output waveform: bi-directional asymmetric square wave.
- c) Continuously adjustable in the output current peak of each way of therapeutic apparatus.
- d) Adjustable in the pulse frequency by two levels, targeted at different diseases, free to select, more efficient in treatment.
- e) Treatment time can be fixed at 5min, 10min, 15min, 20min, 25min and 30min at will.
