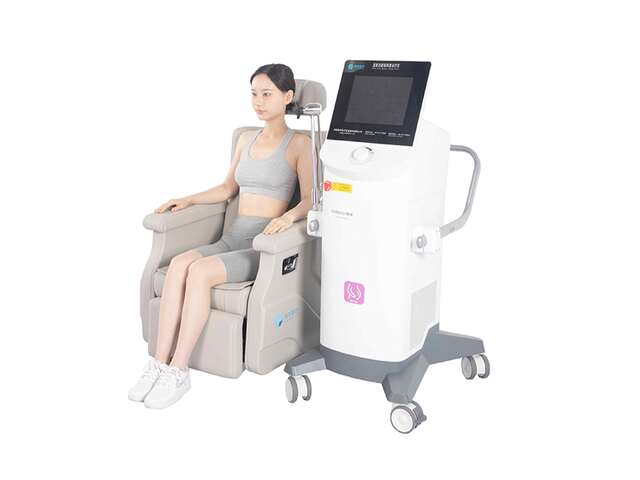

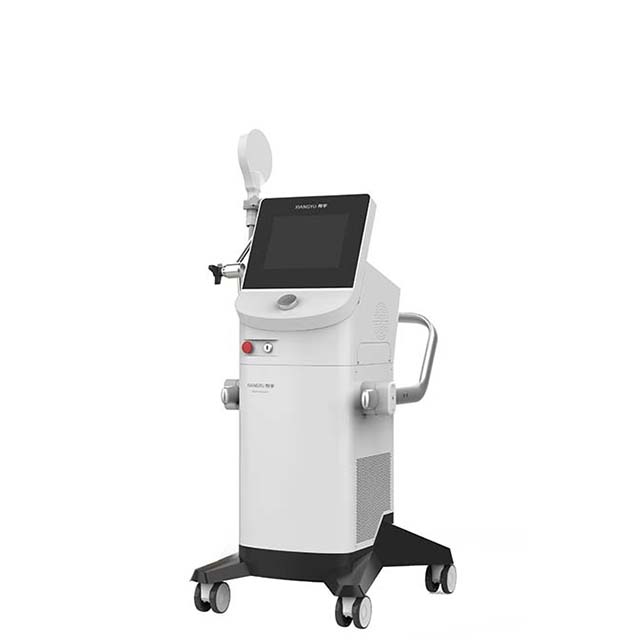

XY-JGC-III

Laser Magnetic Stimulation Therapy



Model Number: XY-JGC-III

Dimensions: 535mm*400mm*1193mm

Material: ABS

Voltage: 220V/50 Hz

Function: Reduce pain

Instrument Classification: Class II

Description

Advantages

  1. Multiple treatment modalities,Four automatic modes, four manual modes.
  2. The adjustable range of the arm is wide.
  3. The noise is small.

Scope of Application
It is suitable for the treatment of pain caused by lumbar muscle strain.



Parameters

Power Supply 220±22V  50±1Hz
Power 1800VA
16 Inch Touch Screen
3.6T Intensity Magnetic and 650nm, 5mW Low Intensity Laser Output
Frequency 1-30Hz
Pulse Width 100μs
Treatment Mode Auto Mode and Manual Mode
Manual Mode Running 1-15s, Interval 0-15s
Working Mode Continuous Output
Timing 0-60min
Length of Output Cable 1650mm
Size 800*670*1320mm
Liquid Cooling System



Contraindications

Pain caused by malignant tumor or other causes.Treatment site skin damage, open wounds, skin diseases, skin perception disorders.Those who have obvious adverse reactions to magnetic therapy have serious heart, liver, lung, kidney, blood or serious diseasesaffecting their survival.There are metal implants and pacemakers.Cerebrovascular disease is not stable or high blood pressure,mental disorders can not cooperate.Pregnant or menstrual women.People with light allergy, acute disease, hyperthermia, children
