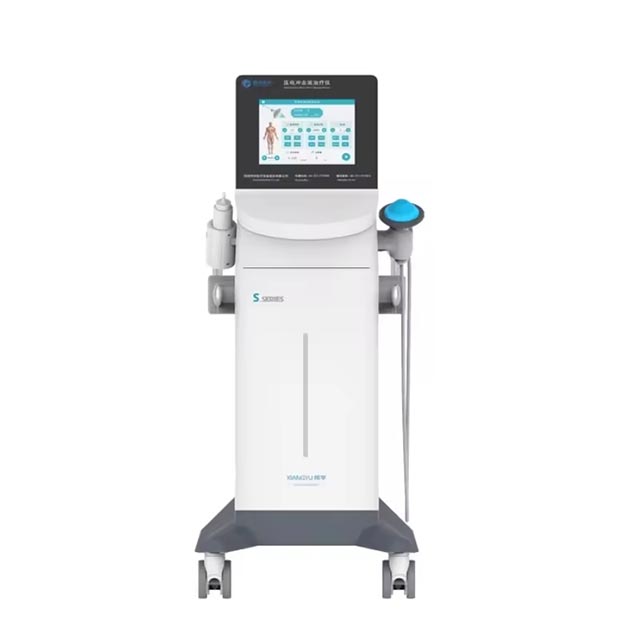

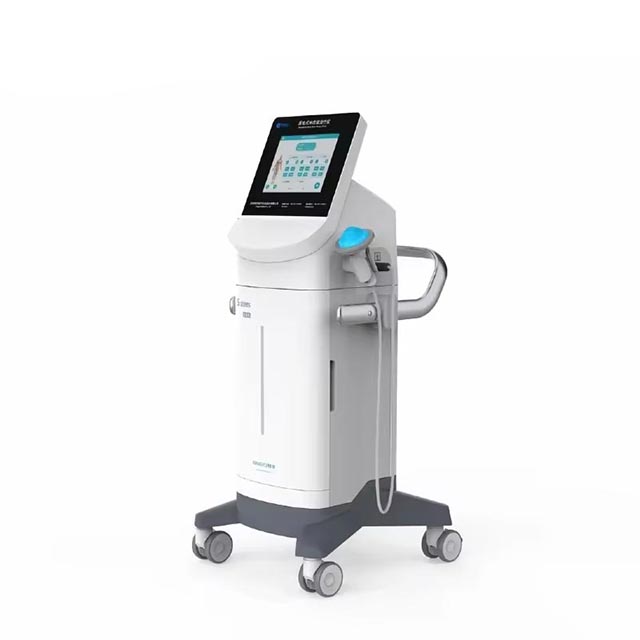

XY-CJB-II

Piezoelectric Shock Wave Therapy Device

XY-CJB-II



Piezoelectric Shock Wave Therapy Device is based on

the principle of inverse piezoelectric effect. Hundreds

of piezoelectric ceramics fixed on the inner wall of the

hemispherical shell, under the action of high frequency

and high voltage electric field, the volume changes

to generate pressure waves and tension waves, all

piezoelectric ceramics vibrate and emit sound waves

at the same time, thereby a high-energy shock wave is

generated by focusing at the ball.

Working frequency: 1Hz ~ 8Hz, step difference 1Hz,

error ±10%.

Counting function: 100 ~ 7000, step difference 100 times,

error ±10%, can be set individually 800, 1500, 3000, 4000

times.

Penetration depth: 5mm, 10mm, 15mm, 20mm, 25mm,

30mm, 35mm, 44mm, 8 types in total. Sound pressure

range: 10~60MPa.

Maximum focus size:Radial ≤ ±1.5mm, axial ≤ ±5mm.

Treatment mode: 10 customized modes.

The couplant can be heated.
