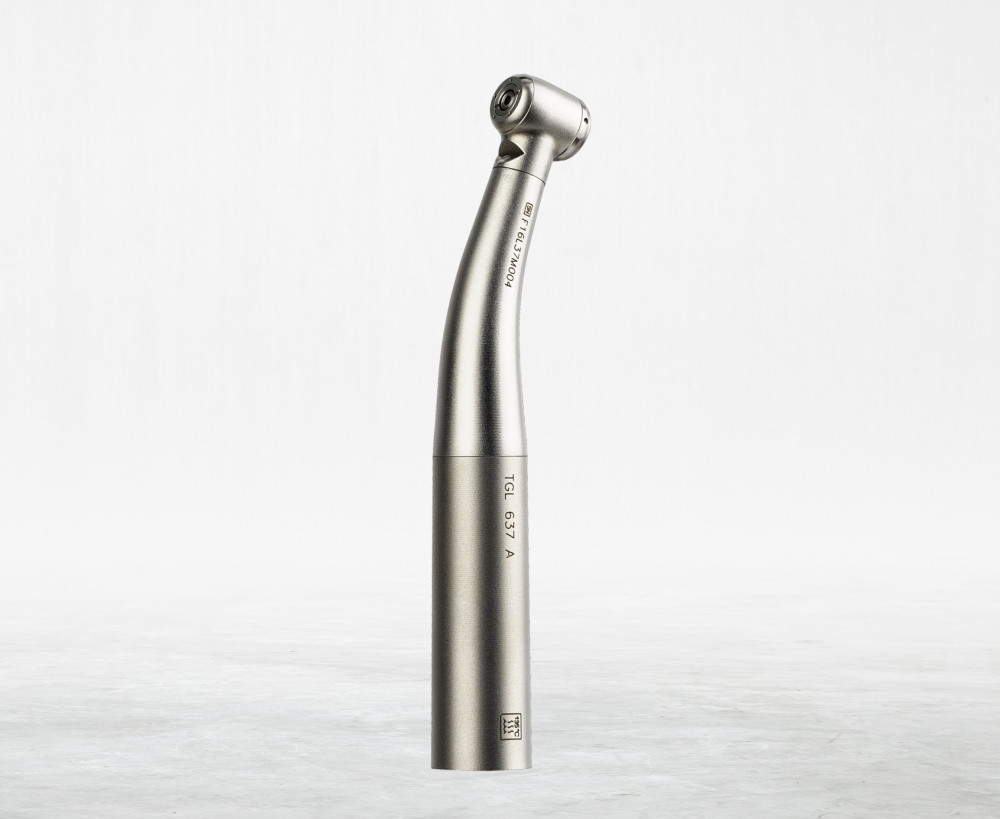

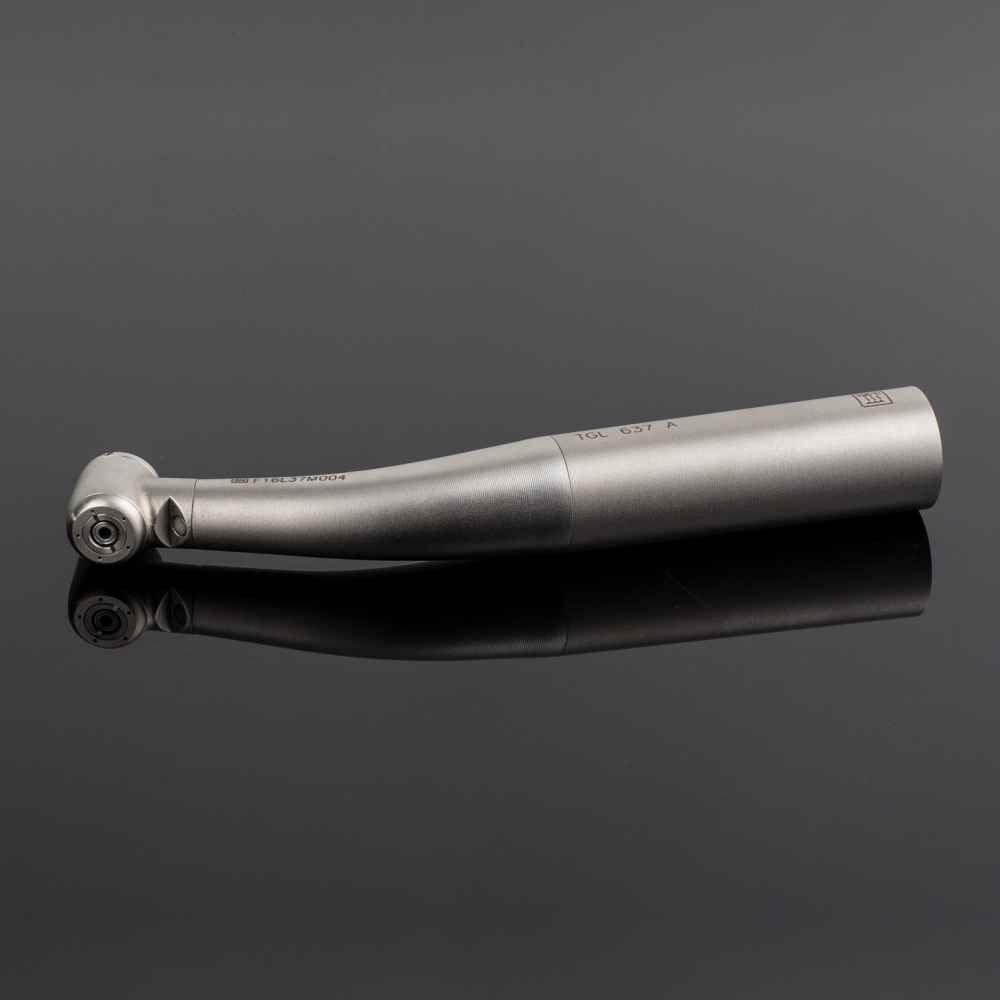

TGL 637A

ADVANTAGES
The advantage of turbines TG /giga/ is their high performance, easy handling in the patient´s mouth and blowing of cavity directly by turbine handpiece /chip blower/. It is necessary to underline the high-alloy stainless steel body of turbine what is reflecting in high hygiene standard, durability and low weight of instrument. Three-jet’s spray is providing effective cooling of whole preparation space. Index „M“ means that connection of turbine handpiece with hose is realised via KaVo quick-coupling MULTIflex what allows to expand the range of connectable instrumets up to 50. High operating speed of turbine handpiece together with its low weight provide the preparation with ,,light hand” to aplly as much painless treatment as possible with failure-free operation of instrument as well.

TECHNICAL FEATURES
• Operating pressure: recommended from 0,21 to 0,23MPa, max. 0,30MPa
• Speed: 380 000 rpm ±10%
• Time to stop: within 2 sec.
• Air consumption: 38 l/min ±2 l/min
• Light intensity: prescribed by producer of quick-coupling
• Light source: halogen bulb, built-in quick-coupling
• Applicable drill-bits: diameter of shank 1,59-1,6mm, length max. 25mm, diameter of cutting-area max 2,1mm
• Gripping power: min 35N
• Sterilisation: AUTOCLAVE 135°C
• Power: 18W
• Operating noise: max. 60 dB(A)

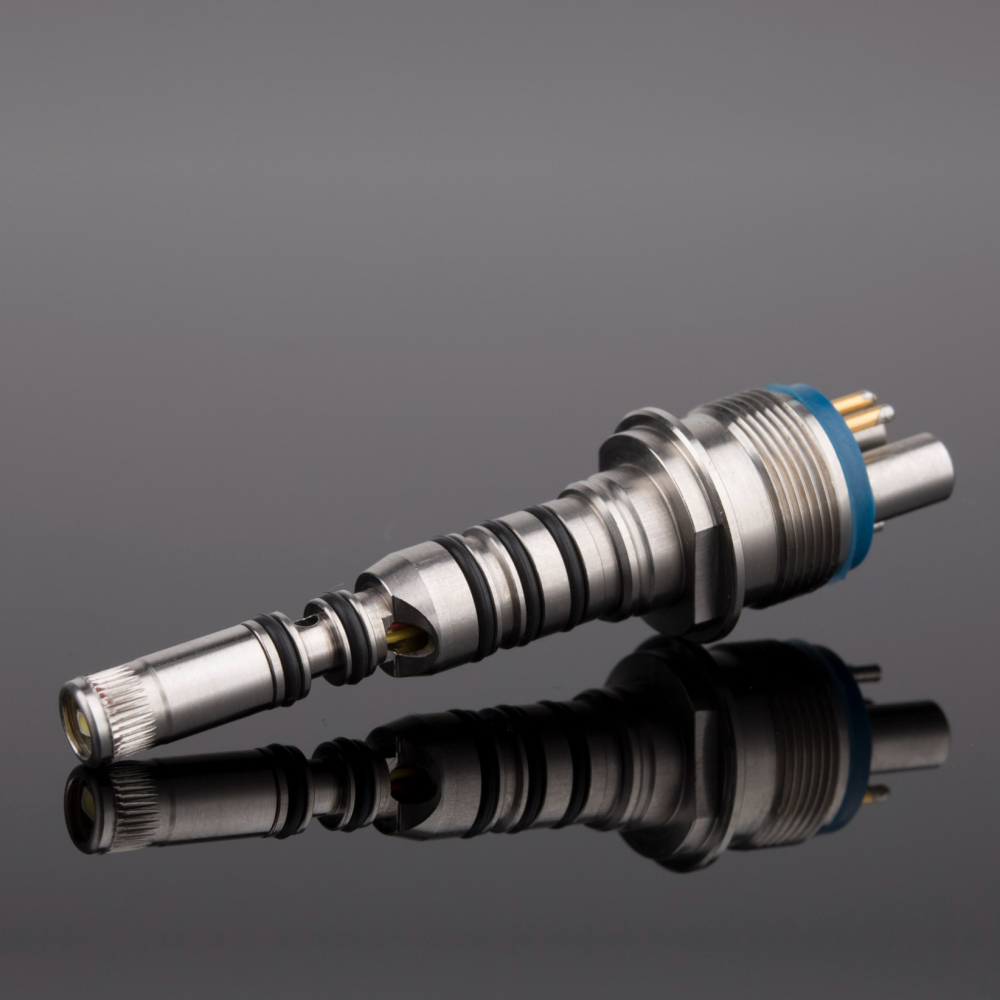

• Connection: quick coupling KaVo MULTIflex 465LRN or equivalent
• Bearings: ceramic (made in Germany)
• Spray: 3-jets
• Weight: 50g
