Medical Equipment and Service Solutions

TG 656

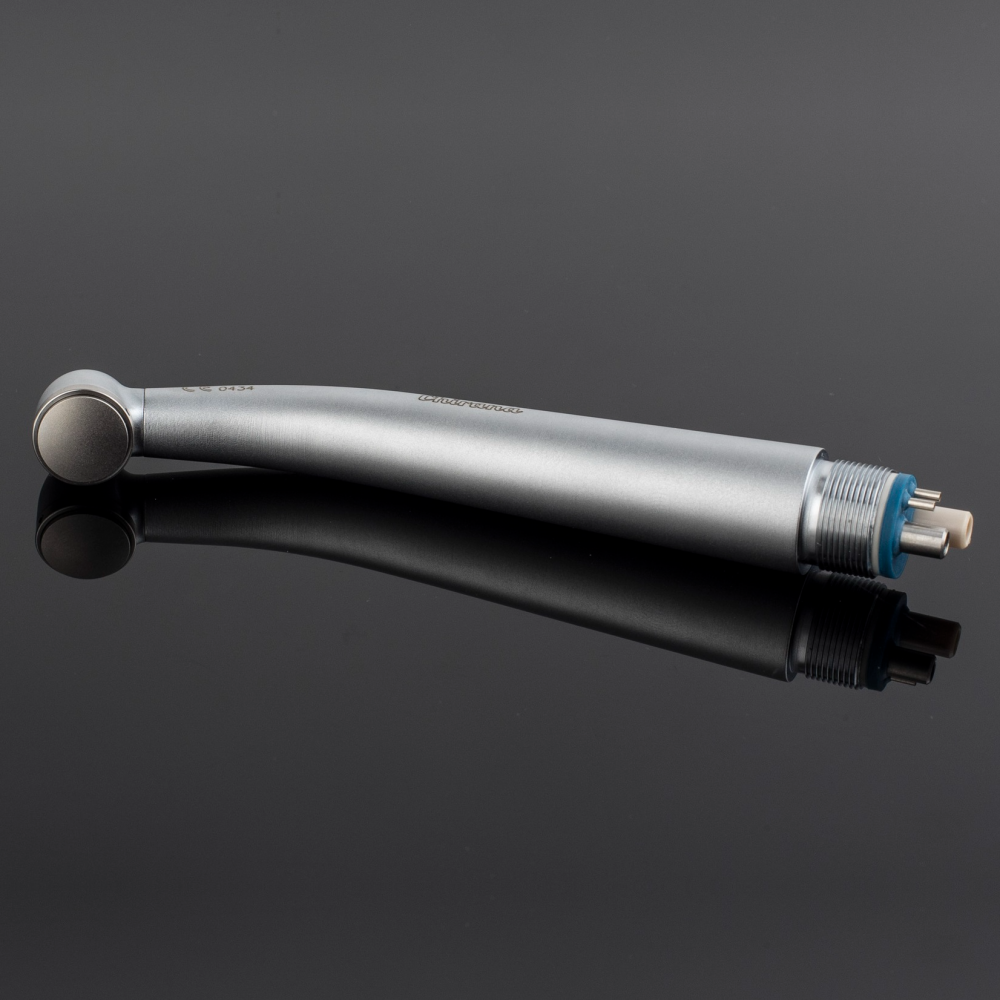

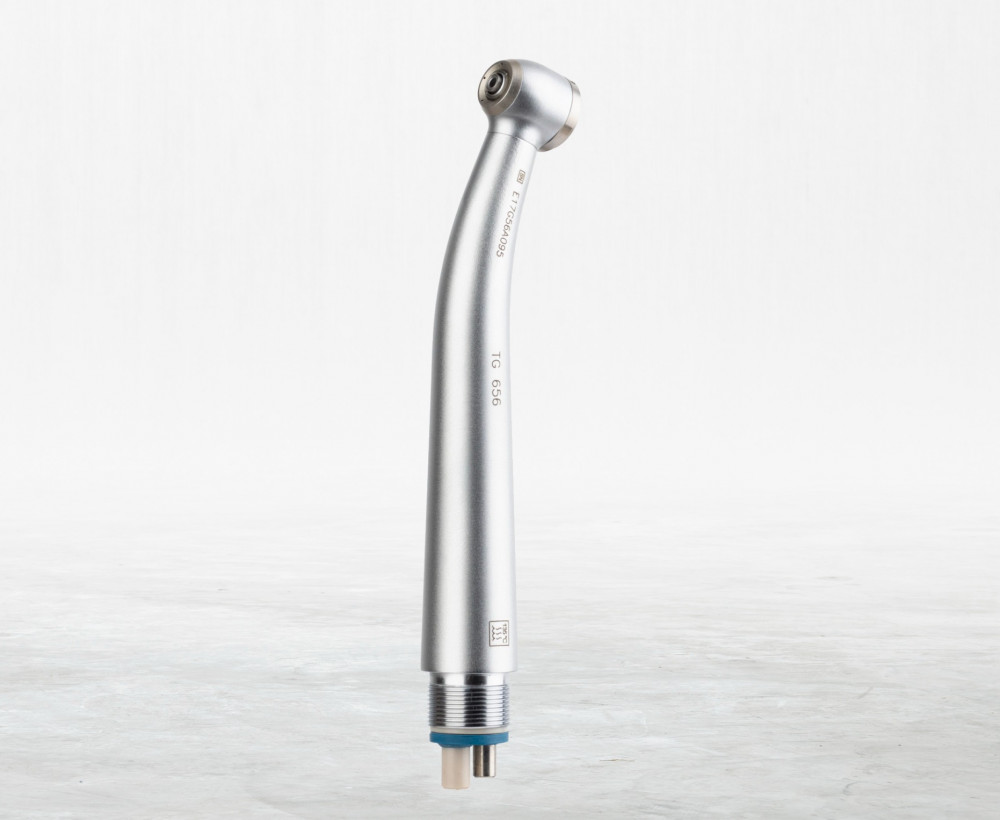

Turbine handpiece TG 656 represents the high performance turbine without light. Turbine handpiece has built-in high quality ceramic bearings, push button system of drill-bit fixation and side cooling system of preparation tool. Body of handpiece is fully produced from stainless-steel to minimize the weight of this dental instrument. The hygiene of turbine is secured by sterilisation at 135°C. The turbine is connected to dental unit via universal turbine hose 4-ISO MIDWEST.

Turbine handpiece TG 656 belongs to the group of air-driven dental handpieces designed for dental treatment, especially for redrilling of enamel, opening of cavity, abrasion of teeth under crown and using a special tool accordance with special operating procedure for cutting up crowns and bridges as well. Optimal operating speed is recommended from 150.000 to 250.000 rpm.

Category:

Description

ADVANTAGES

The advantage of turbines TG /giga/ is their high performance, easy handling in the patient´s mouth and blowing of cavity directly by turbine handpiece /chip blower/. It is necessary to underline the high-alloy stainless steel body of turbine what is reflecting in high hygiene standard, durability and low weight of instrument. High operating speed of turbine handpiece together with its low weight provide the preparation with ,,light hand” to aplly as much painless treatment as possible with failure-free operation of instrument as well. The main advantage of this turbine is the simplicity and very affordable price.

TECHNICAL FEATURES
  • Operating pressure: recommended from 0,21 to 0,23MPa, max. 0,30MPa
  • Speed: 380 000 rpm ±10%
  • Time to stop: within 2 sec.
  • Air consumption: 38 l/min ±2 l/min
  • Applicable drill-bits: diameter of shank 1,59-1,6mm, length max. 25mm, diameter of cutting-area max 2,1mm
  • Gripping power: min 35N
  • Sterilisation: AUTOCLAVE 135°C
  • Power: 18W
  • Operating noise: max. 60 dB(A)
  • Connection: ISO 4 MIDWEST
  • Bearings: ceramic (made in Germany)
  • Spray: side-spray
  • Weight: 58g
