SPL 03.27 – SPL 03.28 – SPL 03.29 – SPL 03.30 Titanium+PTFE piston

TI_PTFE PDF Catalog

Shortable Titanium/PTFE pistons for stapedectomy and stapedotomy

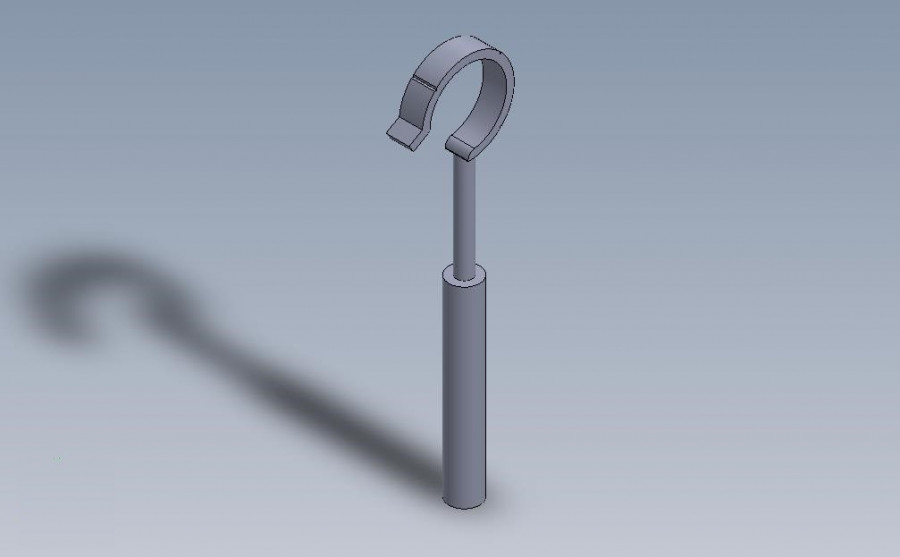

The piston is made of a titanium loop and a PTFE stem that can be easily shortened with a blade or other tools.

Category:

Description

Titanium PTFE piston
Code Packaging Dimensions
SPL 03.27 S 1 piece Length 7,00 mm; diameter 0,4 mm
SPL 03.27.400 1 piece Length 4,00 mm; diameter 0,4 mm
SPL 03.27.425 1 piece Length 4,25 mm; diameter 0,4 mm
SPL 03.27.450 1 piece Length 4,50 mm; diameter 0,4 mm
SPL 03.27.475 1 piece Length 4,75 mm; diameter 0,4 mm
SPL 03.27.500 1 piece Length 5,00 mm; diameter 0,4 mm
SPL 03.27.525 1 piece Length 5,25 mm; diameter 0,4 mm
SPL 03.27.550 1 piece Length 5,50 mm; diameter 0,4 mm
SPL 03.27.575 1 piece Length 5,75 mm; diameter 0,4 mm
SPL 03.27.600 1 piece Length 6,00 mm; diameter 0,4 mm
SPL 03.27.625 1 piece Length 6,25 mm; diameter 0,4 mm
SPL 03.27.650 1 piece Length 6,50 mm; diameter 0,4 mm
SPL 03.28 S 1 piece Length 7,00 mm; diameter 0,5 mm
SPL 03.28.400 1 piece Length 4,00 mm; diameter 0,5 mm
SPL 03.28.425 1 piece Length 4,25 mm; diameter 0,5 mm
SPL 03.28.450 1 piece Length 4,50 mm; diameter 0,5 mm
SPL 03.28.475 1 piece Length 4,75 mm; diameter 0,5 mm
SPL 03.28.500 1 piece Length 5,00 mm; diameter 0,5 mm
SPL 03.28.525 1 piece Length 5,25 mm; diameter 0,5 mm
SPL 03.28.550 1 piece Length 5,50 mm; diameter 0,5 mm
SPL 03.28.575 1 piece Length 5,75 mm; diameter 0,5 mm
SPL 03.28.600 1 piece Length 6,00 mm; diameter 0,5 mm
SPL 03.28.625 1 piece Length 6,25 mm; diameter 0,5 mm
SPL 03.28.650 1 piece Length 6,50 mm; diameter 0,5 mm
SPL 03.29 S 1 piece Length 7,00 mm; diameter 0,6 mm
SPL 03.29.400 1 piece Length 4,00 mm; diameter 0,6 mm
SPL 03.29.425 1 piece Length 4,25 mm; diameter 0,6 mm
SPL 03.29.450 1 piece Length 4,50 mm; diameter 0,6 mm
SPL 03.29.475 1 piece Length 4,75 mm; diameter 0,6 mm
SPL 03.29.500 1 piece Length 5,00 mm; diameter 0,6 mm
SPL 03.29.525 1 piece Length 5,25 mm; diameter 0,6 mm
SPL 03.29.550 1 piece Length 5,50 mm; diameter 0,6 mm
SPL 03.29.575 1 piece Length 5,75 mm; diameter 0,6 mm
SPL 03.29.600 1 piece Length 6,00 mm; diameter 0,6 mm
SPL 03.29.625 1 piece Length 6,25 mm; diameter 0,6 mm
SPL 03.29.650 1 piece Length 6,50 mm; diameter 0,6 mm
SPL 03.30 S 1 piece Length 7,00 mm; diameter 0,8 mm
SPL 03.30.400 1 piece Length 4,00 mm; diameter 0,8 mm
SPL 03.30.425 1 piece Length 4,25 mm; diameter 0,8 mm
SPL 03.30.450 1 piece Length 4,50 mm; diameter 0,8 mm
SPL 03.30.475 1 piece Length 4,75 mm; diameter 0,8 mm
SPL 03.30.500 1 piece Length 5,00 mm; diameter 0,8 mm
SPL 03.30.525 1 piece Length 5,25 mm; diameter 0,8 mm
SPL 03.30.550 1 piece Length 5,50 mm; diameter 0,8 mm
SPL 03.30.575 1 piece Length 5,75 mm; diameter 0,8 mm
SPL 03.30.600 1 piece Length 6,00 mm; diameter 0,8 mm
SPL 03.30.625 1 piece Length 6,25 mm; diameter 0,8 mm
SPL 03.30.650 1 piece Length 6,50 mm; diameter 0,8 mm
