SPL 03.15 – House-type piston for stapedectomy

SPL 0315 PDF Catalog

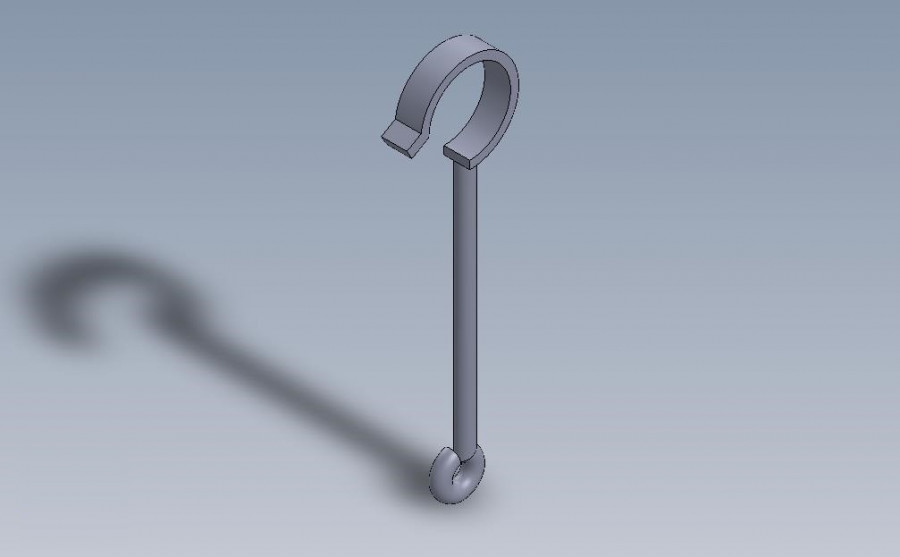

House-type piston for stapedectomy
Code Packaging Dimensions
SPL 03.15.400 1 piece Length 4,00 mm; diameter 0,4 mm
SPL 03.15.450 1 piece Length 4,50 mm; diameter 0,4 mm
SPL 03.15.500 1 piece Length 5,00 mm; diameter 0,4 mm

Description

Description:

Fully in pure platinum 999% (malleable and well-tolerated material).
The end of the stem is bent. allowing a good assembling with the new

membrane of the oval window.

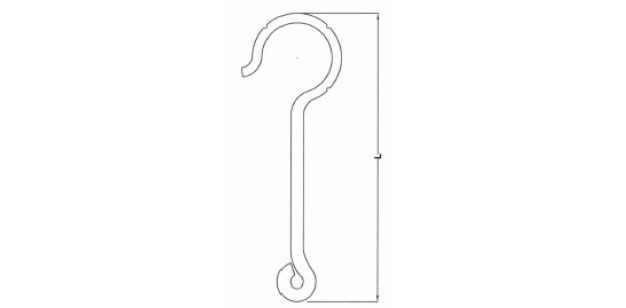

Lengths:

The length of the implant measures also the loop diameter (total length).

The functional length is represented by the total length minus 1 millimeter,

which is the diameter of the loop.
