Description
Laser Magnetic Stimulation Therapy Device can reach the deep neuromuscular tissue of the pelvic cavity, without attenuation of strength, and effectively acts on the deep pelvic cavity tissue; it can effectively relieve pain and promote the recovery of pelvic floor function.
The principle of this machine is based on the law of electromagnetic induction. By charging the high-voltage energy storage capacitor, the stimulation coil is discharged in a very short time. The strong current generates an instantaneously changing magnetic field around the coil, which induces the induction of peripheral nerves in the human body. Electric field and current realize painless, non-destructive and non-invasive inductive stimulation.
The analgesic effect of the magnetic field is related to the following aspects: reducing the level of pain-causing substances so that they cannot reach the threshold of causing pain; increasing the activity of choline, histaminase, and kininase to hydrolyze pain-causing substances; improving blood circulation , Accelerate blood flow, promote the removal of pain-causing substances from the local area, thereby reducing the level of local pain-causing substances. In addition, it can also promote the secretion of morphine-like endocrine in the body, thereby relieving pain.
Scope of Application
Stimulate the central and peripheral nerves of the human body, and are used for adjuvant treatment of human central nervous injury diseases and lumbosacral nerve dysfunction.
Main Structure

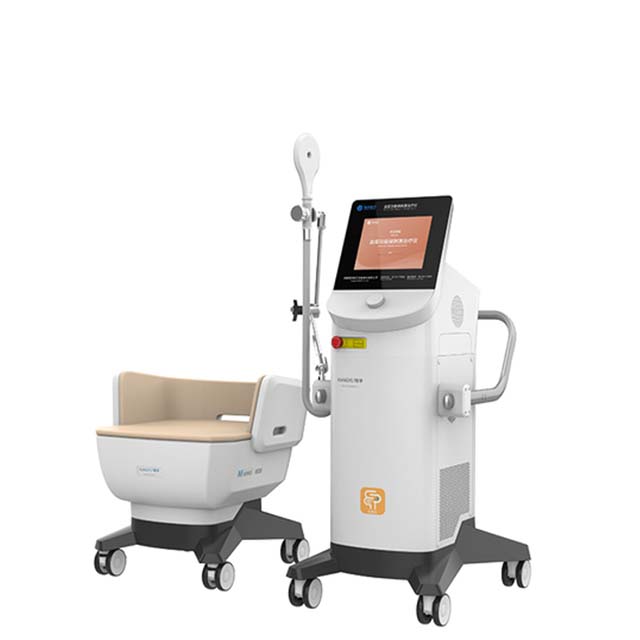

This device consists of a host and a therapeutic device.
Parameters
| Power | AC220V±22V 50Hz±1Hz |
| 16 Inch Touch Screen | |
| 6T Intensity Magnetic | |
| Frequency | 1-100Hz |
| Pulse Width | 340μs |
| Treatment Mode | Auto Mode & Manual Mode |
| Manual Mode | 1-100Hz, running 0.1-60s, interval 0-60s |
| Auto Mode | Automatic Frequency Variation |
| Timing | 1-60min |
| Length of Output Cable | 1650mm |
| Size | 800*670*1320mm |
| Liquid Cooling & Air Cooling System | |
Contraindications
Pain caused by malignancy, cachexia, autoimmune disease, or other causes.
