Medical Equipment and Service Solutions

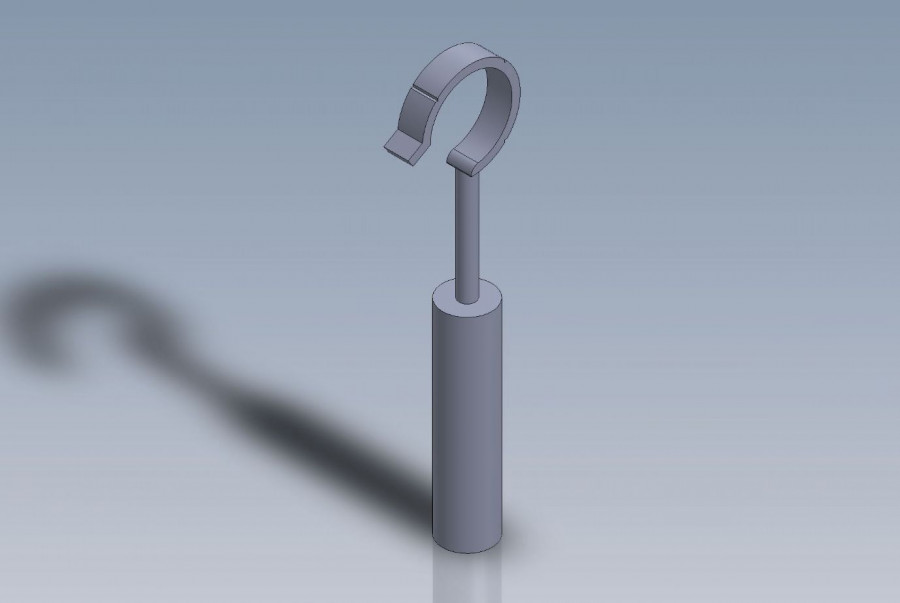

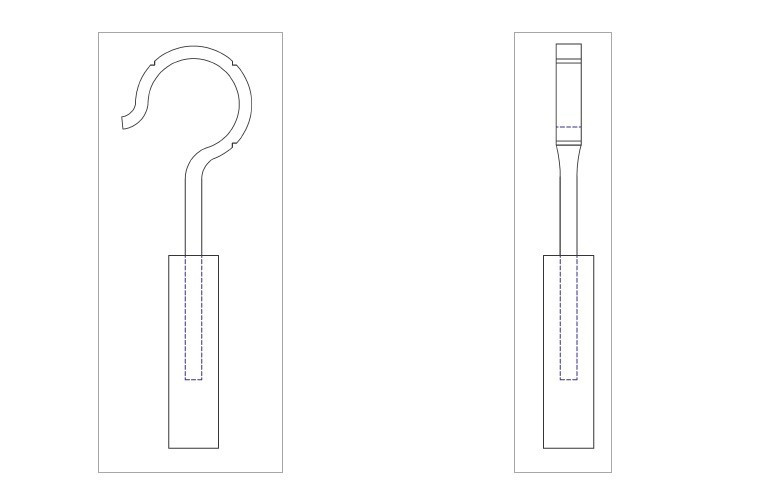

SPL 03.07 – SPL 03.08 – SPL 03.09 – SPL 03.10 Platinum/PTFE piston for stapedectomy and stapedotomy



PT_PTFE PDF Catalog



    Description:

PTFE: polytetrafluorethylene

Fully in pure platinum 999% (malleable and well-tolerated material).

The stem is in PTFE.

The loop has 3 grooves: with a light pressure of the forceps the

grooves allow an equal and soft crimping,

diluting the pressure on the long apophysis of the

incus without causing necrosis because of overcrimping.



Category:

Description

Platinum/PTFE piston for stapedectomy and stapedotomy
Code Packaging Dimensions
SPL 03.07 S 1 piece Length 7,00 mm; diameter 0,6 mm
SPL 03.07.400 1 piece Length 4,00 mm; diameter 0,6 mm
SPL 03.07.425 1 piece Length 4,25 mm; diameter 0,6 mm
SPL 03.07.450 1 piece Length 4,50 mm; diameter 0,6 mm
SPL 03.07.475 1 piece Length 4,75 mm; diameter 0,6 mm
SPL 03.07.500 1 piece Length 5,00 mm; diameter 0,6 mm
SPL 03.07.525 1 piece Length 5,25 mm; diameter 0,6 mm
SPL 03.07.550 1 piece Length 5,50 mm; diameter 0,6 mm
SPL 03.07.575 1 piece Length 5,75 mm; diameter 0,6 mm
SPL 03.07.600 1 piece Length 6,00 mm; diameter 0,6 mm
SPL 03.07.625 1 piece Length 6,25 mm; diameter 0,6 mm
SPL 03.07.650 1 piece Length 6,50 mm; diameter 0,6 mm
SPL 03.08 S 1 piece Length 7,00 mm; diameter 0,4 mm
SPL 03.08.400 1 piece Length 4,00 mm; diameter 0,4 mm
SPL 03.08.425 1 piece Length 4,25 mm; diameter 0,4 mm
SPL 03.08.450 1 piece Length 4,50 mm; diameter 0,4 mm
SPL 03.08.475 1 piece Length 4,75 mm; diameter 0,4 mm
SPL 03.08.500 1 piece Length 5,00 mm; diameter 0,4 mm
SPL 03.08.525 1 piece Length 5,25 mm; diameter 0,4 mm
SPL 03.08.550 1 piece Length 5,50 mm; diameter 0,4 mm
SPL 03.08.575 1 piece Length 5,75 mm; diameter 0,4 mm
SPL 03.08.600 1 piece Length 6,00 mm; diameter 0,4 mm
SPL 03.08.625 1 piece Length 6,25 mm; diameter 0,4 mm
SPL 03.08.650 1 piece Length 6,50 mm; diameter 0,4 mm
SPL 03.09 S 1 piece Length 7,00 mm; diameter 0,5 mm
SPL 03.09.400 1 piece Length 4,00 mm; diameter 0,5 mm
SPL 03.09.425 1 piece Length 4,25 mm; diameter 0,5 mm
SPL 03.09.450 1 piece Length 4,50 mm; diameter 0,5 mm
SPL 03.09.475 1 piece Length 4,75 mm; diameter 0,5 mm
SPL 03.09.500 1 piece Length 5,00 mm; diameter 0,5 mm
SPL 03.09.525 1 piece Length 5,25 mm; diameter 0,5 mm
SPL 03.09.550 1 piece Length 5,50 mm; diameter 0,5 mm
SPL 03.09.575 1 piece Length 5,75 mm; diameter 0,5 mm
SPL 03.09.600 1 piece Length 6,00 mm; diameter 0,5 mm
SPL 03.09.625 1 piece Length 6,25 mm; diameter 0,5 mm
SPL 03.09.650 1 piece Length 6,50 mm; diameter 0,5 mm
SPL 03.10 S 1 piece Length 7,00 mm; diameter 0,8 mm
SPL 03.10.400 1 piece Length 4,00 mm; diameter 0,8 mm
SPL 03.10.425 1 piece Length 4,25 mm; diameter 0,8 mm
SPL 03.10.450 1 piece Length 4,50 mm; diameter 0,8 mm
SPL 03.10.475 1 piece Length 4,75 mm; diameter 0,8 mm
SPL 03.10.500 1 piece Length 5,00 mm; diameter 0,8 mm
SPL 03.10.525 1 piece Length 5,25 mm; diameter 0,8 mm
SPL 03.10.550 1 piece Length 5,50 mm; diameter 0,8 mm
SPL 03.10.575 1 piece Length 5,75 mm; diameter 0,8 mm
SPL 03.10.600 1 piece Length 6,00 mm; diameter 0,8 mm
SPL 03.10.625 1 piece Length 6,25 mm; diameter 0,8 mm
SPL 03.10.650 1 piece Length 6,50 mm; diameter 0,8 mm
