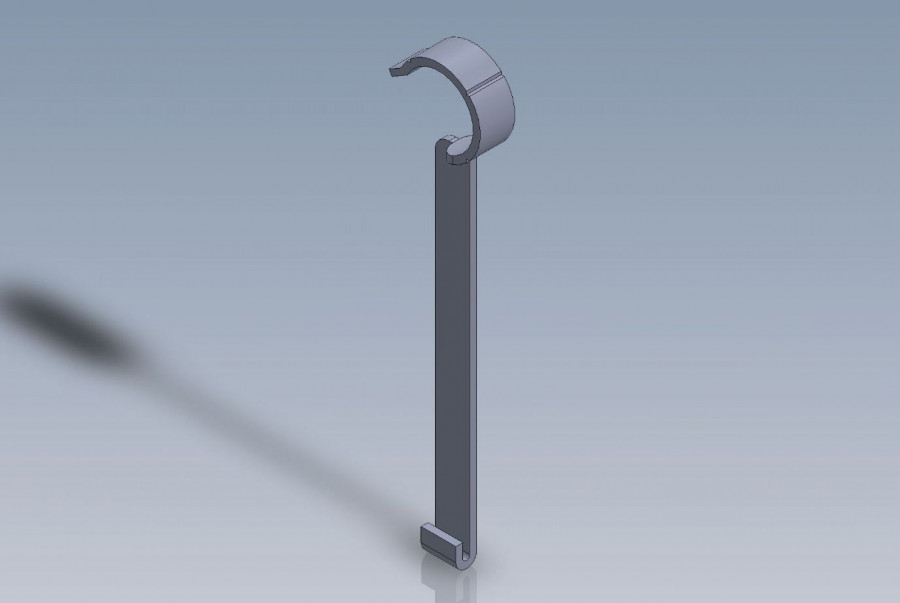

SPL 03.00 – Platinum piston for stapedectomy

SPL 0300 PDF Catalog

Code Packaging Dimensions
SPL 03.00.300 1 piece length 3,00 mm
SPL 03.00.350 1 piece length 3,50 mm
SPL 03.00.400 1 piece length 4,00 mm
SPL 03.00.425 1 piece length 4,25 mm
SPL 03.00.450 1 piece length 4,50 mm
SPL 03.00.475 1 piece length 4,75 mm
SPL 03.00.500 1 piece length 5,00 mm
SPL 03.00.550 1 piece length 5,50 mm
SPL 03.00.600 1 piece length 6,00 mm
Category:

Description

Description

Fully in pure titanium 999% (malleable and well-tolerated materila).

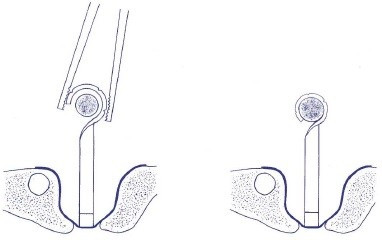

The loop has three grooves: with a light pressure of the forceps, the grooves allow an equal loop crimping,

following the long apophysis of the incus without causing necrosis or overcrimping.

The edge of the stem is bent to allow the assembling with the new membrane of the oval window.

The weight of the piston (about 3 mg) is very similar to the actual stapes weight.
