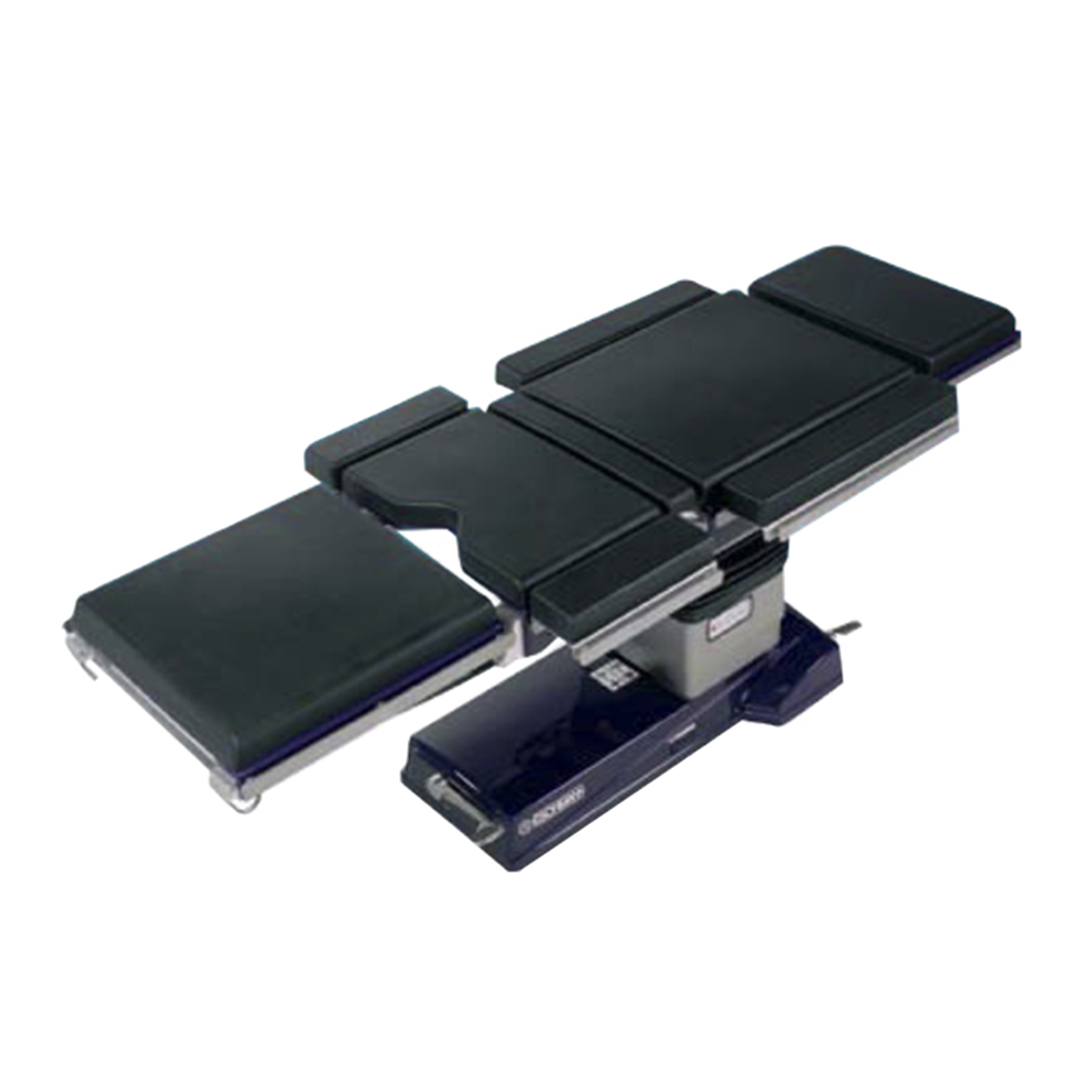

Eschmann T20 Series Operating Table



DETAILS

A Limited Number of Factory-Demo Eschmann T20 Operating Tables Now Available
Discover the versatility of the T20 Series operating table range, with a sliding top for better imaging and ease of use.
Corded handset with battery status indicator
The lightweight handset is colorful, easy to use and can be secured and operated on either the side bars or the end of the head/leg section. The handset also features a practical battery status indicator.
Unique fixings are easy to secure the mattress
A new method of fixing the mattress to the table that is easy to use and clean. The acrylic capped ABS top and base prevents ingress of fluid, is hard wearing, scratch-resistant and easy to clean. The mattress spans the break ensuring better patient support.
Independent built-in override
A standby control panel is located on the top of the column. This enables full use of the table in the event of handset loss or battery failure.
Ergonomically designed foot pedals
Choice of foot pedals to accommodate different operating threatre layouts.

Category:

Description

Features

• Powered 250mm traversing top
• Capable of 300 kg maximum patient weight
• X-ray translucent table-top
• 720-1120mm height range including mattress
• Slimline column offset relative to top and base
• Table-top break offset from column
• Narrow T-shaped base
• Head and leg sections are lighter for ease of handling
• 600mm wide top plus optional width extenders for obese patients
• Full length X-ray cassette tunnel accessible from either end
• RS232 port for system analysis
• Interchangeable and removable head and leg sections
• Corded handset with batter status indicator
• Acrylic capped ABS top prevents fluid ingress, is easy to clean, scratch resistant and hard wearing
• Simple mattress fixings, no Velcro
• Mattress spans the break for improved patient support LI>Choice of ergonomically designed foot pedals

SPECIFICATIONS
General
• Powered operating table with 250 mm traversing top for general and specialist surgery
• 300kg maximum patient weight
• Full length radiolucent top with integral X-ray cassette tunnel accessible from either end
• Corded handset controlling Trendelenburg, reverse Trendelenburg, lateral tilt, flexion/extension (including 90° chair position), traverse and height
• Battery status indication (main and back up battery) via handset
• Offset table-top flexion/extension and offset slimline column for superior imaging and access
• Column covers in stainless steel
• Standby control panel and RS 232 port
• Battery powered, with facility for connection to main electricity with immediate use
• Two pedals control brakes, wheels and castors for stability, steering and complete 360° mobility
• Head and leg sections are removable and interchangeable with an auto-locking mechanism, and can be adjusted with one hand
• Covers to the top and base are made of a special scratch resistant and colorful acrylic capped ABS
• High quality mattress spans break for improved patient support
