Description
Features
Affordable midsize light for minor surgery and procedures.
• LED array delivers maximum sharpness and color accuracy.
• Three-stage dimming for easily controlling the brightness within the illumination field.
• Maximum output rated at 75,000 Lux.
• 4,300° K bright white illumination.
• Color Rendering Index: 97.
• Long-life LED’s rated at 50,000 hours.
• Dimming and on/off switch controlled by autoclavable handle.
• Light array emits virtually no radiated heat.

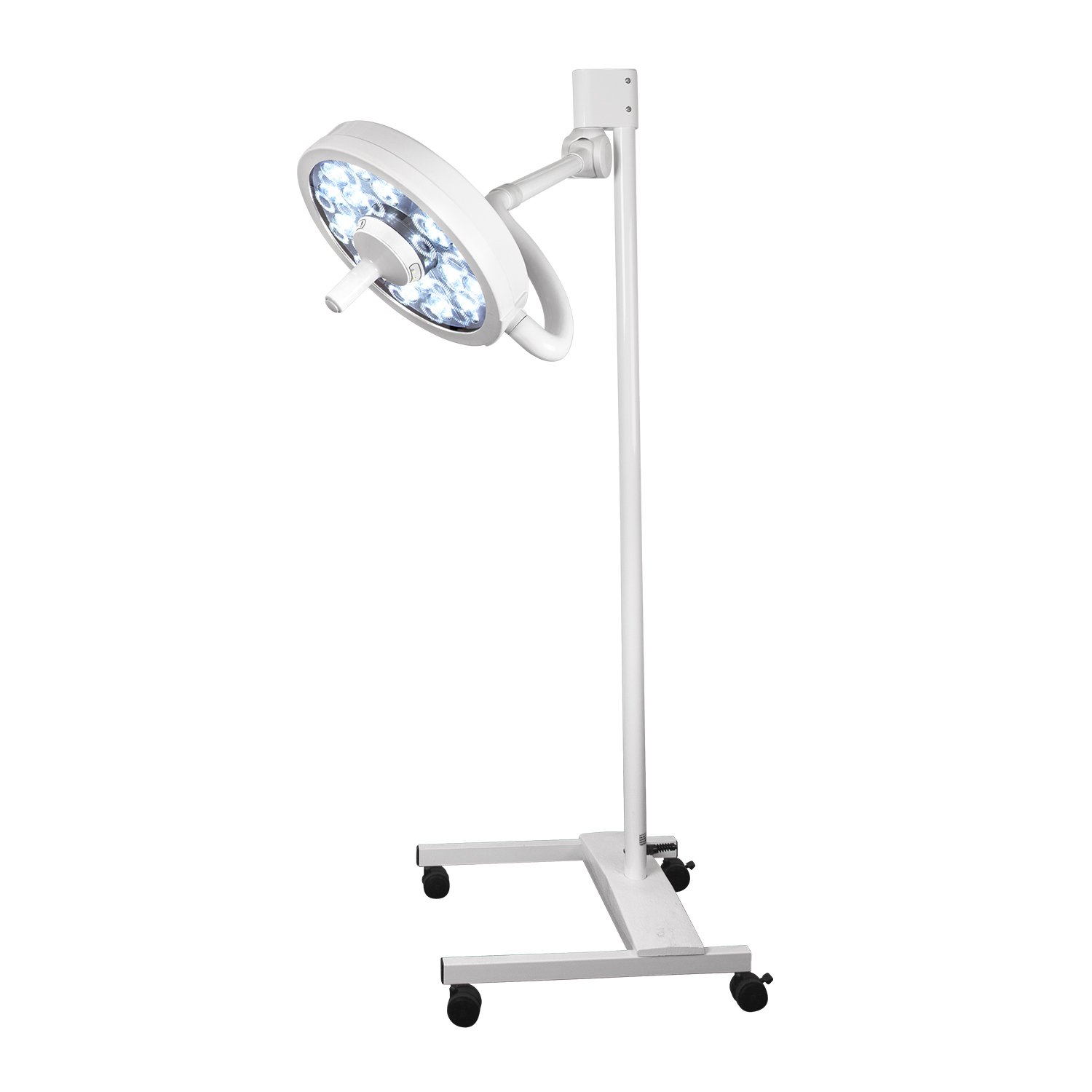

• Floor mounted light with battery backup available.

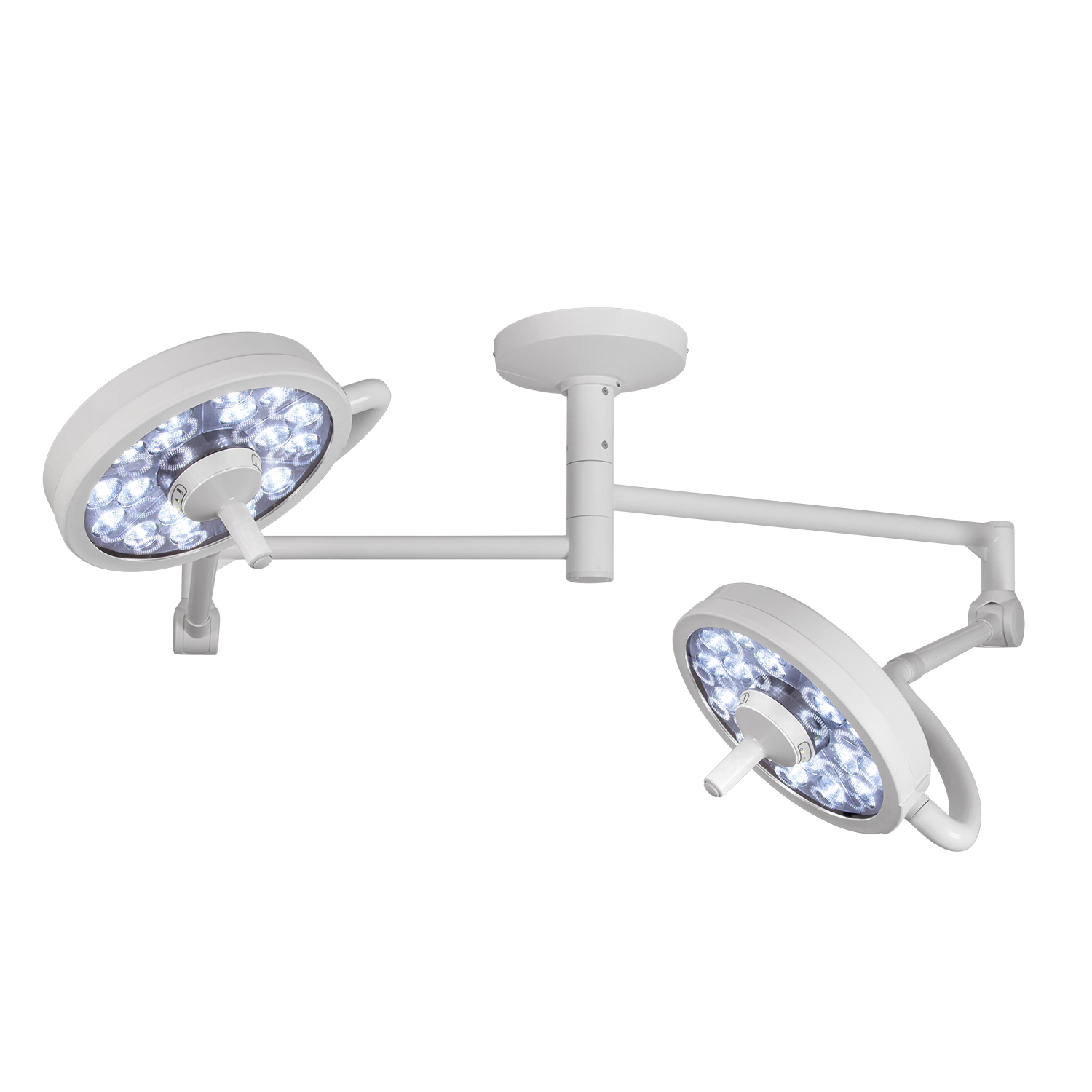

• Available in a variety of other mounting options — ask your Avante representative for more information.
SPECIFICATIONS
Optical Specifications
• Number of LED’s: 18
• Output: 75,000 Lux @ 39.4 in (1 m)
• CCT: 4,300° K
• CRI: 97
• Focal length: 39.4 in (1 m)
• Dimming levels: 3
• Dimming percentages: 100%, 75%, 50%
• Endo mode: No
• Light field (d10): ≈Ø7.7 in (Ø196 mm)
• Light field (d50): ≈Ø4.3 in (Ø110 mm)
• Depth of illumination: 26.5 in (673 mm)
• Illuminance (one mask): .003%
• Illuminance (two mask): 34.5%
• Illuminance (tube with one mask): .003%
• Illuminance (tube with two masks): 35.5%
• Irradiance: 196 W/m²
Electrical Specifications
• Supply circuit: 100 – 240 VAC, 50/60Hz
• Fuse rating: 1.5 Amp/250VAC
• Power supply: 65W
• Light head power consumption: 27W @24VDC
Mechanical Specifications
• Light head weight: 9.0 lbs (4.1 kg)
• Light head dimensions: Ø14.5 in (368 mm) | 3.25 in H (83.3 mm)
• Arm assembly weight (single): 48.3 lb (22.0 kg)
• Arm assembly weight (dual): 77.1 lb (35.0 kg)
• Articulating arm vertical movement: +15° Up, -60° Down
• Articulating arm horizontal movement: ≈540°
• Articulating arm/yoke interface: ≈540°
• Yoke/light head interface: ≈300°
Environment Specifications
• Ambient/operating temperature: 41°F to 104°F (5°C to 40°C)
• Storage temperature: -4°F to 122°F (-20°C to 50°C)
• Humidity: 10 – 90% relative humidity
• Pressure: 100kPA (@<2k meters)
