Description
Options
PC-based data management software (Smart ECG Viewer)

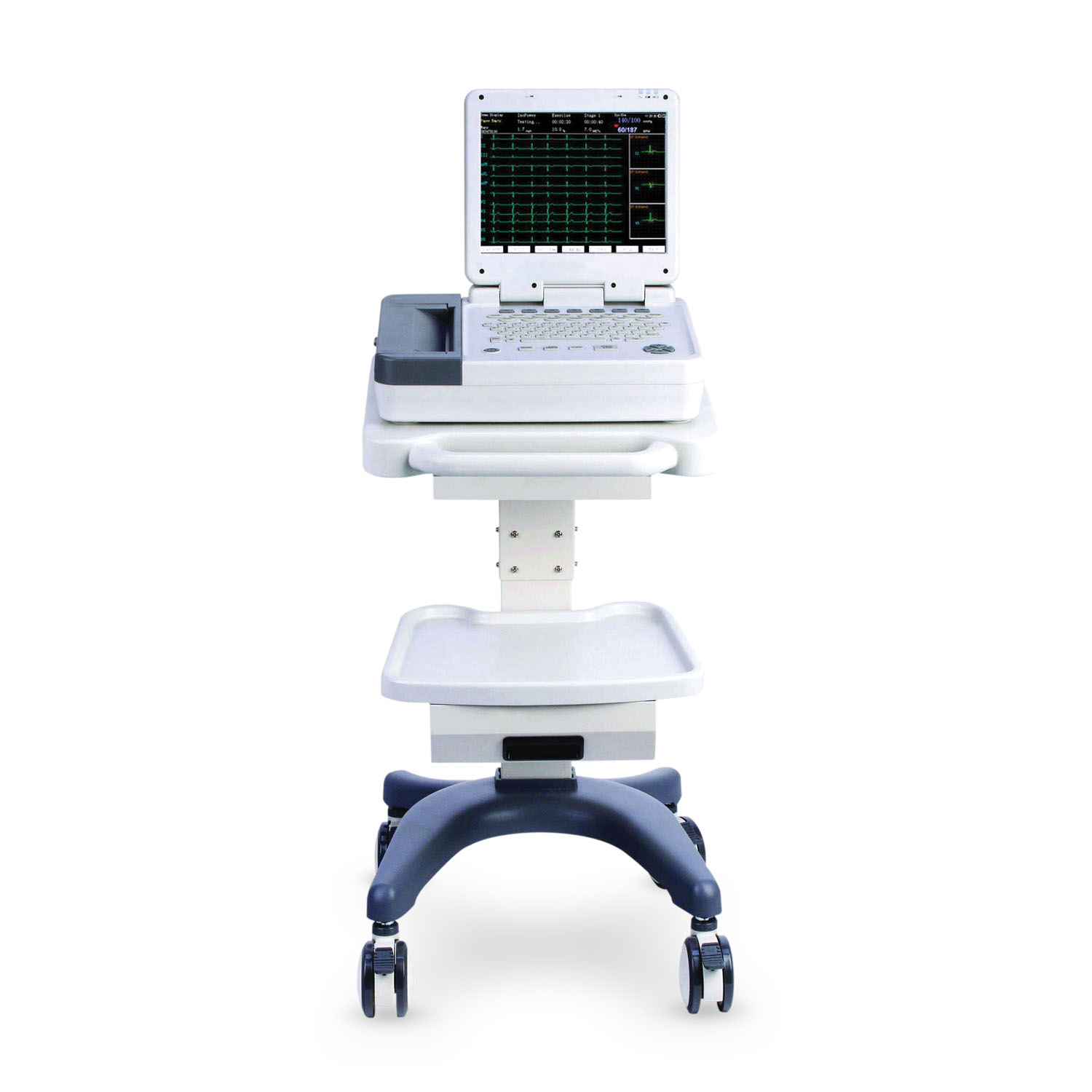

Trolley and cable bracket
Stress testing upgrade (optional)
Treadmills or bicycles and Suntech tango+ exercise blood pressure monitor supported.
Customized exercise protocols
ST analysis and reports
SPECIFICATIONS
General
Input Circuit: Defibrillation protection built-in
Lead Standard: 12 leads
Acquisition Mode: Simultaneous 12-lead acquisition (10-24 seconds adjustable)
A/D Converter: 24 bits
Input Voltage Range: ±5mVpp
Time Constant: >3.2s
Frequency Response: 0.05Hz – 150Hz
Calibration Voltage: 1mV±2%
Sensitivity: 2.5, 5, 10, 20, 10/5.AGC (mm/mV)
Input Impedance: 50M Ω (10Hz)
Input Circuit Current: <10nA
Noise Level: <12.5 μ A Vp-p
Anti Baseline Drift: Automatic
Patient Leakage Current: <10 μ A (220V-240V)
Patient Auxiliary Current: <0.1 μ A (DC)
Filter:
EMG filter 25 Hz/35Hz/45Hz/OFF
DFT filter 0 .05/0.15/0.25/ 0.5/0.32/0.67Hz
Lowpass filter 150Hz/100Hz/75Hz, AC filter 50Hz/60Hz
CMRR: >115dB
Recording Mode: Auto/Manual/Rhythm/R-R Analyze
Rhythm Lead: Single lead or three leads selectable
Power Supply: AC:100V-240V, 50/60Hz
Battery: Built-in rechargeable Li-ion battery
Voltage: 14.4V, for about 400 copies ECG printing
Recorder: Thermal paper
Record paper: Fled paper, rolled paper
Paper width: 216mm, 210mm
Record speed: 5mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s (±3%)
Dimension: 420mm × 330mm × 120mm
Display: 800 × 600 multicolor LCD
External Input/Output: Input > 100 K Ω: Sensitivity 10mm/V ± 5%, Output
Communication Ports: Ethernet, RS232
