Description
Features
• Easy-to-use, five-movement C-arm table with high-speed actuators.
• Rapid positioning via the following table motions: height, lateral tilt, Trendelenburg, longitudinal travel, lateral travel.
• Maximum patient weight:
o Patient support, centered on column with height adjustment: 661 lb.
o Full articulation, centered on column: 500 lb.
o Full articulation, including slide: 450 lb.

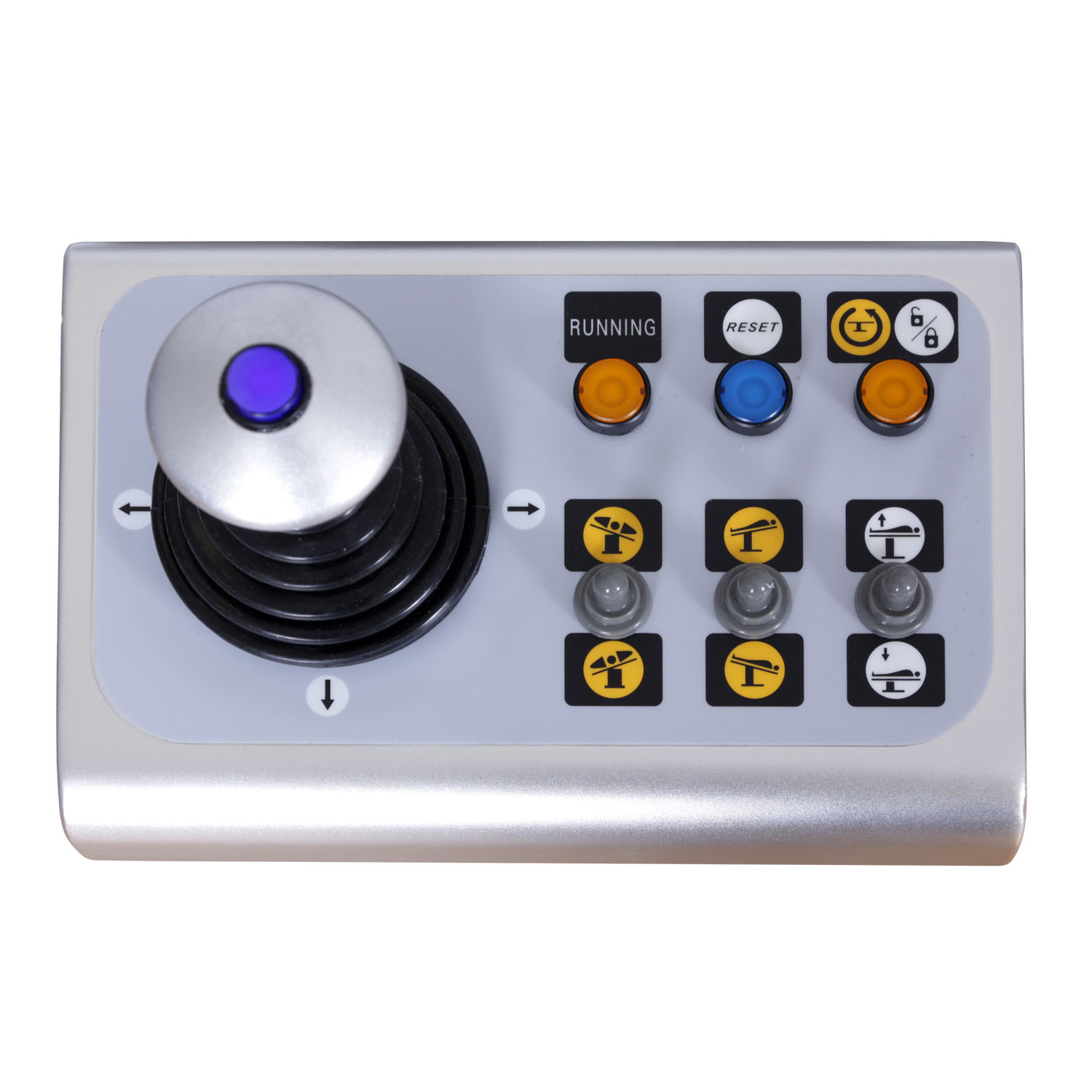

• Comes standard with onboard control panel and handheld remote control.
• High-quality casters and braking system allow clinicians to easily move the table.
• Compatible with a variety of popular C-arm systems from industry-leading brands.
• Available with a variety of accessories — ask your Avante representative for details.
• Micromotors ensure quick, smooth, and balanced table movements.
• Carbon fiber table allows clinicians to get high-quality, clear images with low X-ray doses.

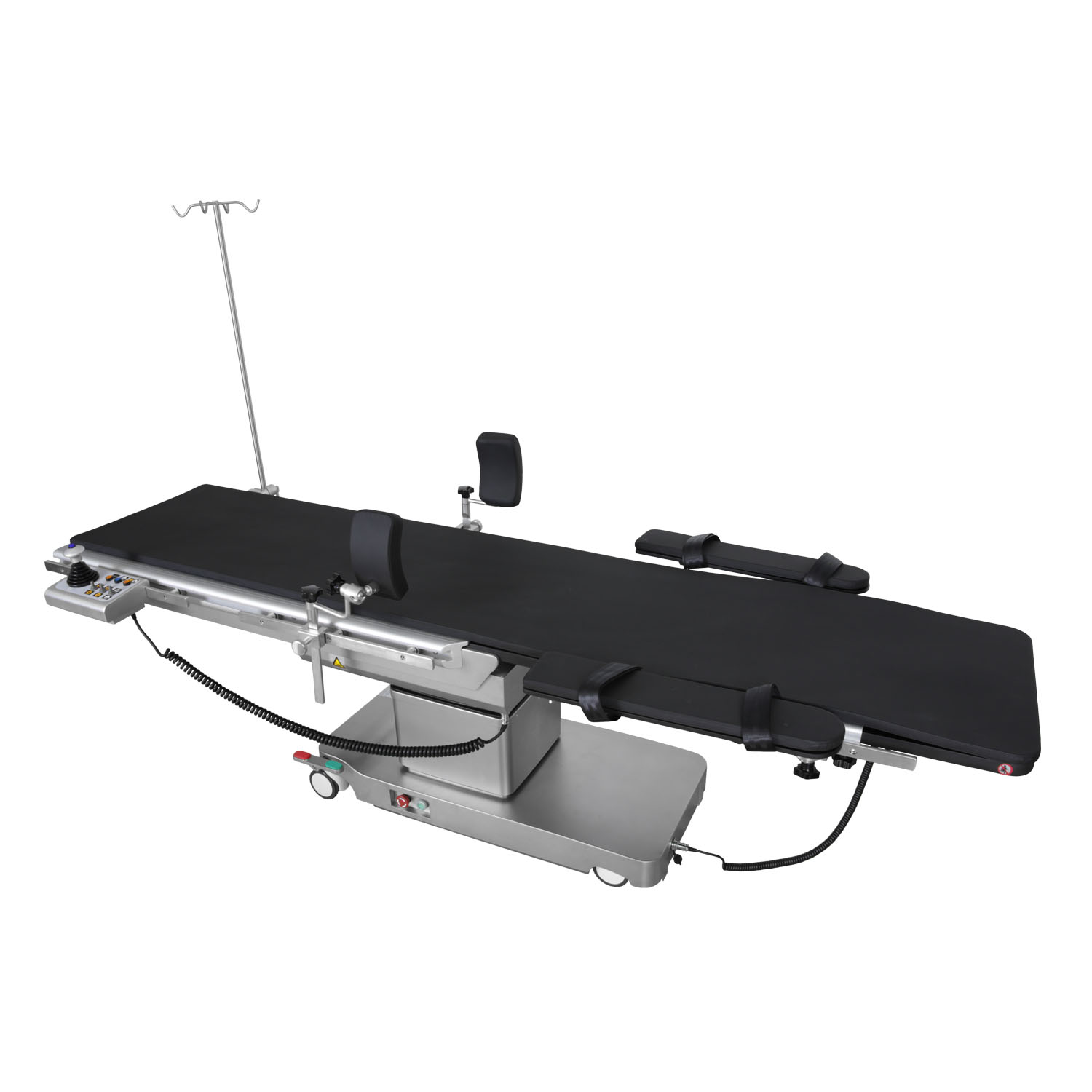

Standard Accessories
• Mattress – 1 piece
• Onboard Controller – 1 set
• Remote Control – 1 set
• Lateral support – 1 pair
• IV pole
• Fixed belts – 1 pair
• Arm boards – 1 pair
• Anesthesia screen
• Removable rail – 2 pieces
Optional Accessories
• Lead drape
SPECIFICATIONS
General
• Tabletop Length: 96.75 in
• Tabletop Width: 20.9 in
• Tabletop Thickness: 1.5 in
• Power: 120 V / 50 Hz / 350 VA (available in 220 V)
• Max. Patient Weight: 661 lb, including raise/lower (centered on column)
• Max. Full Articulation Weight: 500 lb centered on column; 450 lb including slide
Tabletop Movement
• Head Section Transparency: 72.5 in
• Foot Section Transparency: 32.75 in
• Longitudinal Travel: 31.5 in
• Trendelenburg: 0-27°
• Reverse Trendelenburg: 0-27°
• Lateral Travel: 8 in
• Lateral Roll: 0-27°
• Vertical – Min. distance from floor: 28 in
• Vertical – Max. distance from floor: 44.75 in
