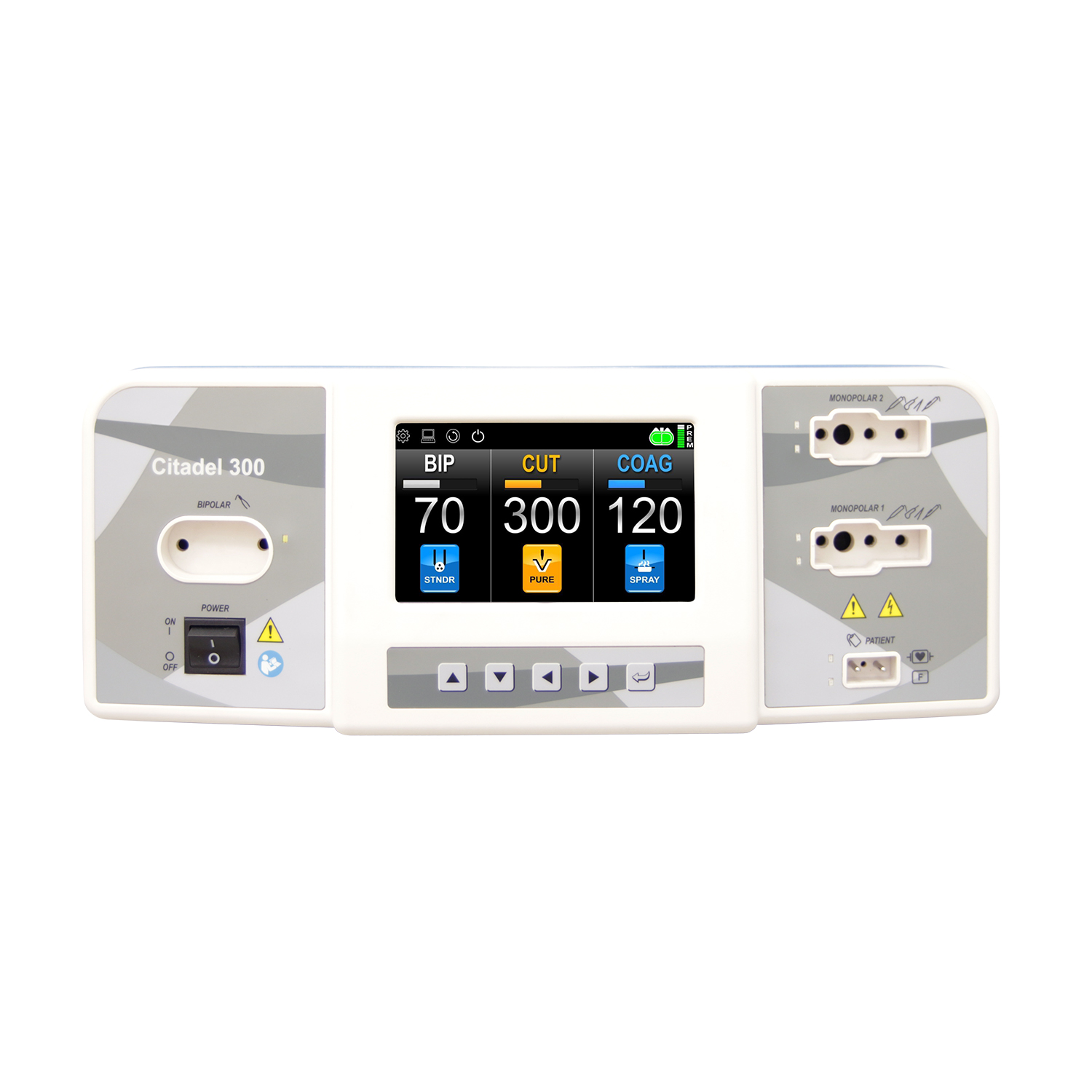

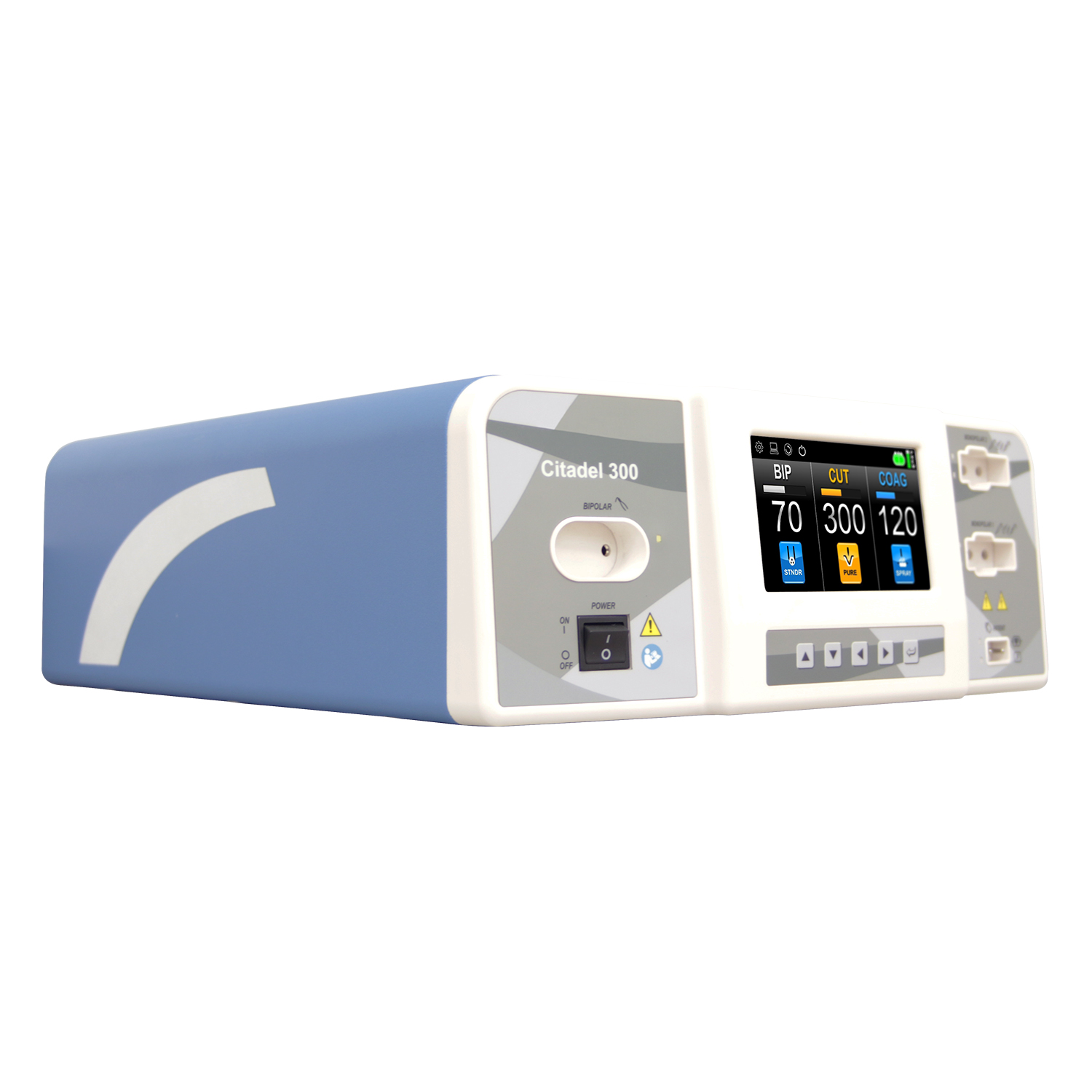

Avante Citadel 300 Electrosurgical Unit (ESU)



Brand: Avante
Type: Electrosurgical Units



DETAILS
The Avante Citadel 300 is a full-featured, 300 watt ESU for today’s operating room.
The Avante Citadel 300 is a touchscreen ESU that can easily adapt to a variety of surgical environments. It provides clinicians with 300 watts of stable power for many applications: Plastic Surgery, ENT, Endoscopy, Laparoscopy, Ophthalmology, Urology, Gynecology and Thoracic procedures.

The Citadel 300 features six Bipolar modes with BiCut mode. Easily operate the machine with built-in features such as Auto Bipolar Mode and accessory activation indicators.

The Avante Citadel 300 is available with various footswitches, ESU pens and pencils and grounding pads. Contact an Avante Representative for more information.

Features
Intuitive touchscreen interface for easy operation.
Tissue sensing technology provides a microprocessor controlled feedback system to detect changes in voltage, current, power, tissue density, electrode contact and leakage RF current.
4 Cut Modes: Low, Pure, Blend Cut and EndoCut (optional)
4 Coag Modes: Soft, Swift, Fulger and Spray Coag
6 Bipolar Modes: Micro, Standard and Macro Modes and three Auto Modes with high impedance bipolar output.
Fully microprocessor controlled system for enhanced clinical precision.
Auto Bipolar Mode for automatic activation.
Programmable delay time feature for bipolar modes.
More than 50 customizable settings for individual surgeons and various procedures.
Accessory activation indicator.

Description

SPECIFICATIONS
Dimensions
Length: 45.0 cm
Width: 35.5 cm
Height: 11.5 cm
Weight: < 7.5 kg
Environmental
Transport Temperature Range: -40° to 70°C
Transport Relative Humidity: 10% to 100%, condensing
Operating Temperature Range: 10°C to 40°C
Operating Relative Humidity: 30% to 75%, non-condensing
Input Power
Mains nominal voltage: 110 Volt
Maximum VA at nominal line voltage: Idle: 60 VA | Bipolar: 390 VA | Cut: 920 VA | Coag: 520 VA
Input mains voltage, full regulation range: 90-135 Vac
Input mains voltage, operating range: 80-140 Vac
Mains current (maximum): Idle: 0.4 A | Bipolar: 2.8 A | Cut: 7 A | Coag: 3.8 A
Mains line frequency range (nominal): 50 to 60 Hz
Fusing: 10A
Power cord: E108 US Type
Available Power Settings
Bipolar: 1 to 40 by step of 1, 40 to 70 by step of 5
Monopolar Cut – Low and Pure: 1 to 40 by step of 1, 40 to 100 by step of 5, 100 to 300 by step of 10
Monopolar Cut – Blend: 1 to 40 by step of 1, 40 to 100 by step of 5, 100 to 200 by step of 10
Monopolar Coag: 1 to 40 by step of 1, 40 to 100 by step of 5, 100 to 120 by step of 10
