Description
Available Models

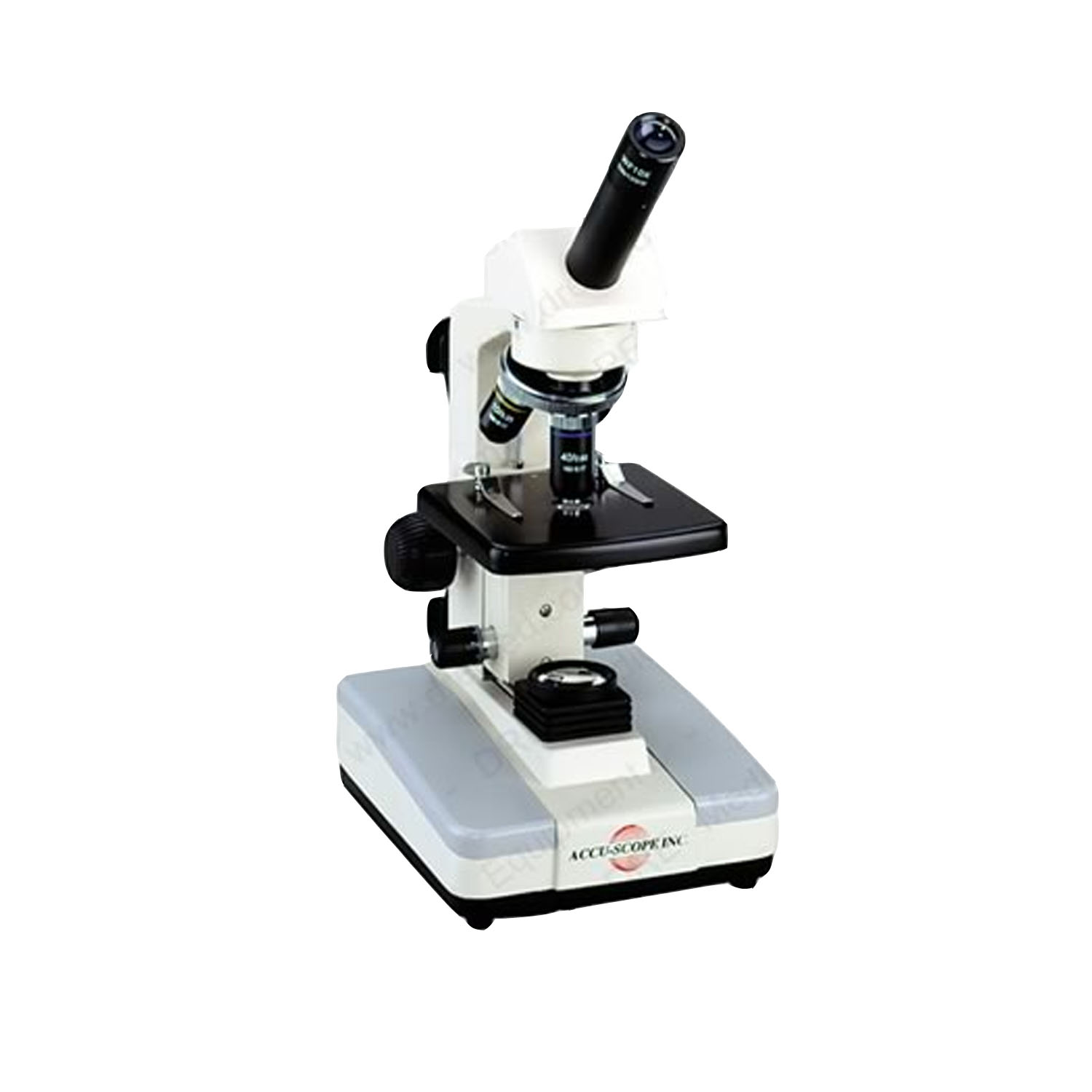

3088F, 3088F-T, 3088F-MS, 3088F-TMS, 3088F-I, 3088M, 3089F
Eyepiece
WF10x eyepiece with pointer, 18mm field of view. The eyepiece is locked-in to prevent classroom tampering.
Head
Monocular or dual inclined teaching head.Viewing bodies are inclined 45° and rotatable 360°.
Stand
Full size stand with separate coarse and fine adjustment controls set in ergonomic, low positions for comfortable use. Cast alloy aluminum stand with an acid resistant lustrous almond finish.
Nosepiece
Rear facing, triple (3088F) or quadruple (3089F) revolving, ball-bearing nosepiece with positive click stops to ensure parcentration.
Stage
119 × 119 mm with stage clips or factory installed double-plate mechanical stage with low position controls and iris diaphragm.
Substage
3088F models offer a built-in N.A. 0.65 condenser with five aperture disc or iris diaphragm. The 3089F incorporates an N.A. 1.25 abbe condenser with iris diaphragm on a spiral mount.
Illumination: Built-in 5 watt fluorescent illumination with collector lens and ON/OFF switch. Fluorescent bulb has a 10,000-hour rated bulb life. Grounded 3-wire line cord and cord hanger for simple and easy storage.
Optional Accessories
Eyepieces – WF15x (15mm F.O.V.) or WF20x (11mm F.O.V), Objectives – 20x and 60xR*, Mirror and fork, 21mm micrometers and microscope carry case.
Cat# Head Stage Diaph. Illum.
3088F Monocular Clips Disc 5 watt fluor.
3088F-T Teaching Clips Disc 5 watt fluor.

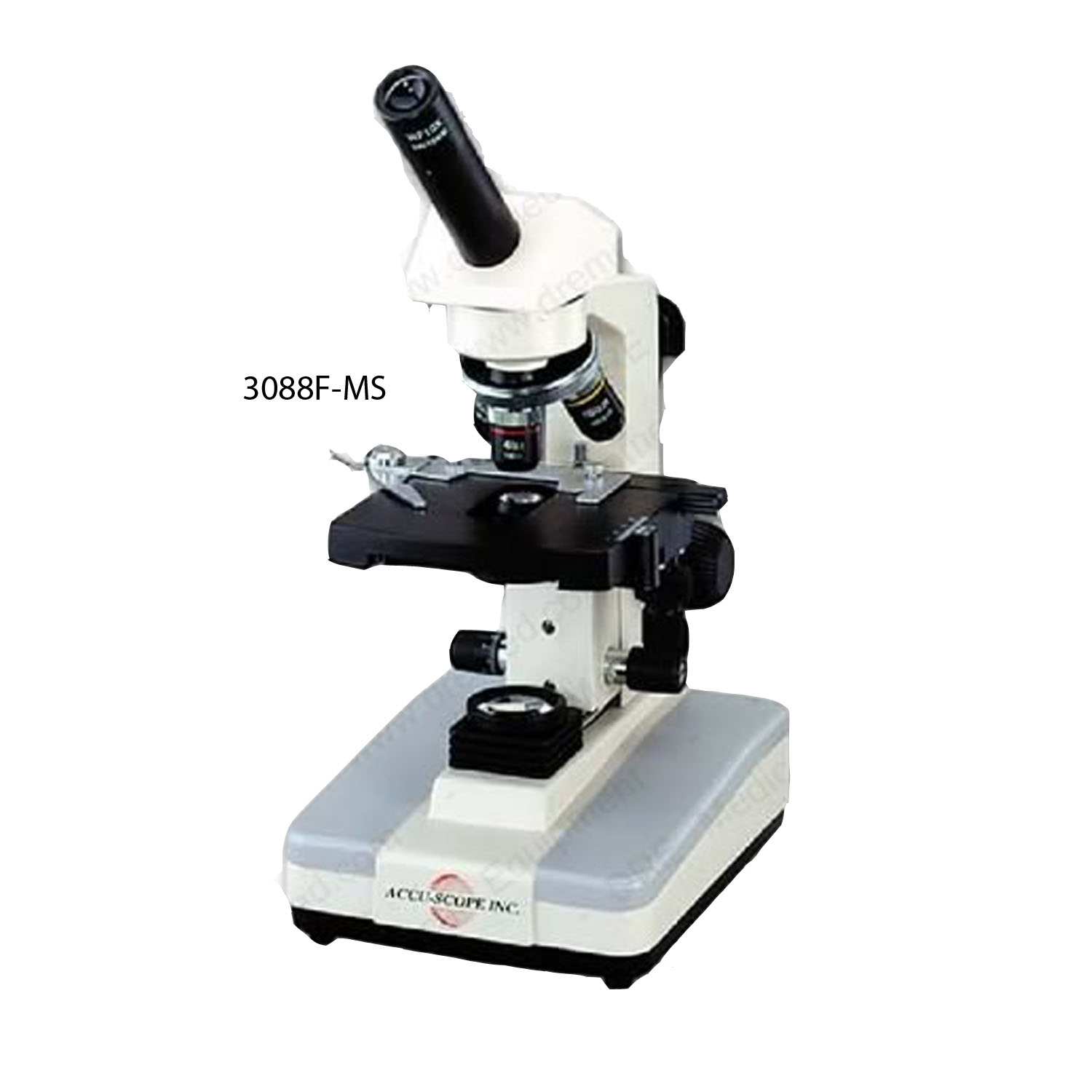

3088F-MS Monocular Mechanical stage w/low position controls Iris 5 watt fluor.
3088F-TMS Teaching Mechanical stage w/low position controls Iris 5 watt fluor.
3088F-I Monocular Clips Iris 5 watt fluor.
3088M Monocular Clips Disc Mirror
3089F Monocular Mechanical stage w/low position controls Iris 5 watt fluor.
